Home >> Cadillac >> 1992 >> DeVille V8-300 4.9L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Locations >> Component Locations >> Starter Solenoid

Starter Solenoid

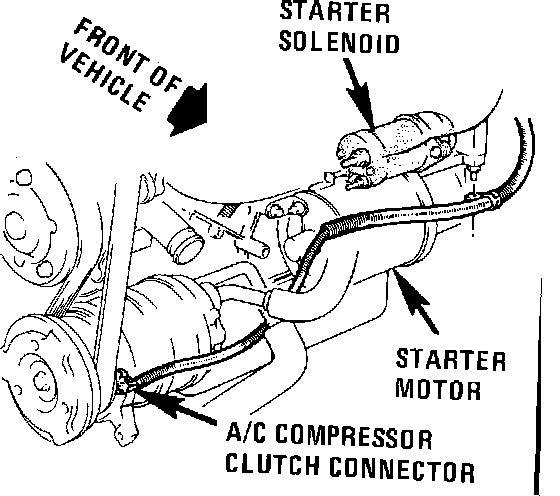

Component Location View. Lower Front of Engine:





Lower LH front of engine, above starter motor
