Shift Cable: Service and Repair

SHIFT CONTROL CABLE REPLACEMENT









Remove or Disconnect

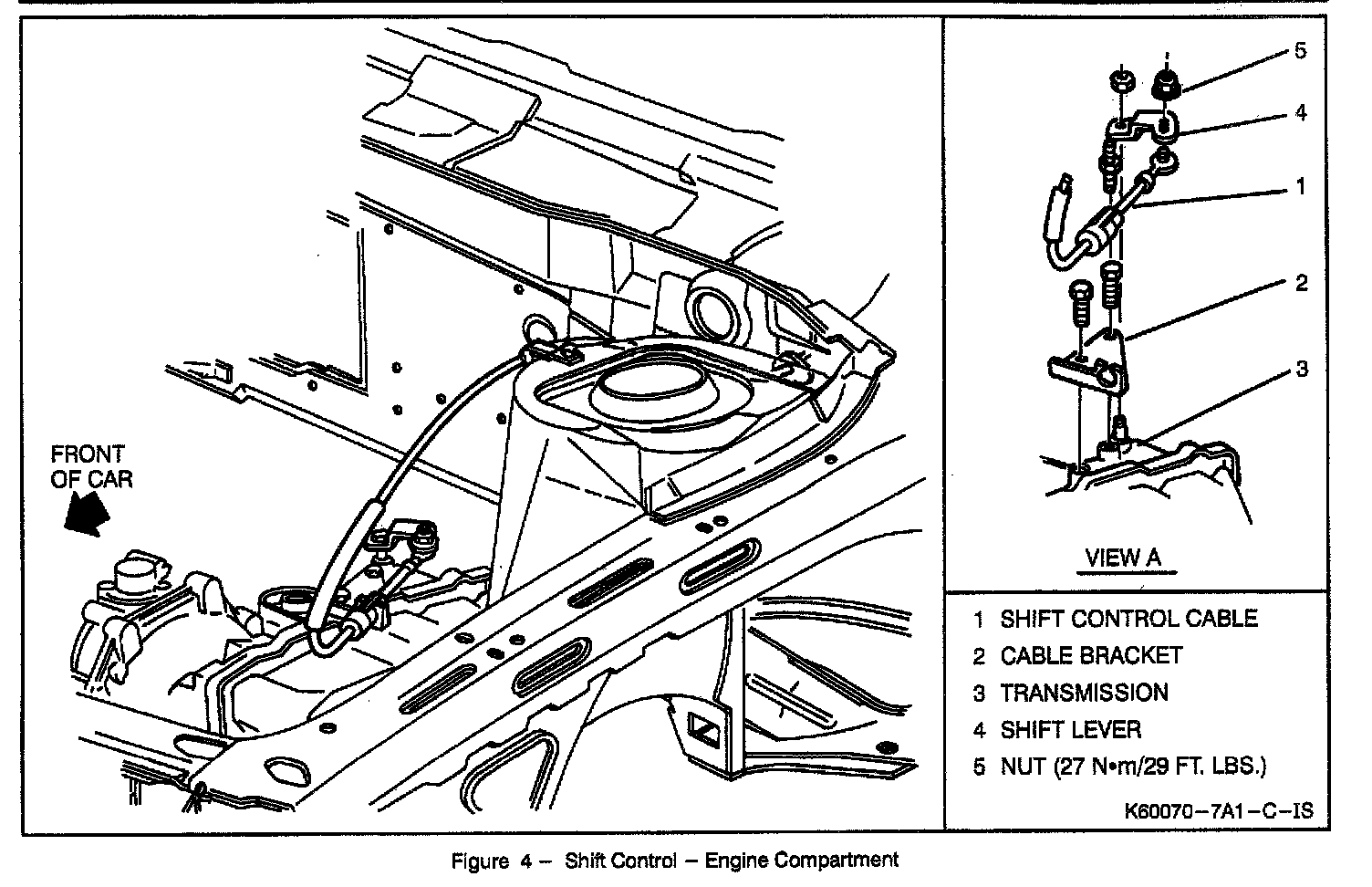

1. Cable (1) from transaxle lever (4) and bracket (2).
2. Left hush panel.

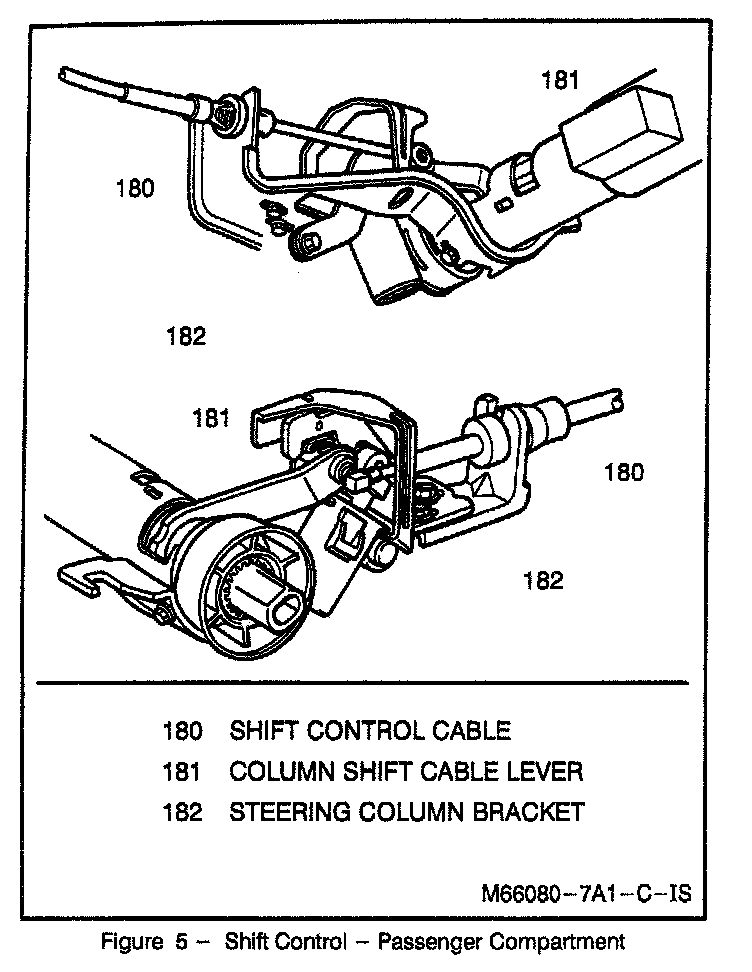

3. Cable from bracket on steering column (182).
4. Cable assembly.


Install or Connect
1. Properly route and position cable (1).
2. Cable (1) to steering column bracket (182).
3. Left hush panel.
4. Cable at transaxle lever (4) and bracket (2).
5. Adjust the cable as previously described.
