System Diagram

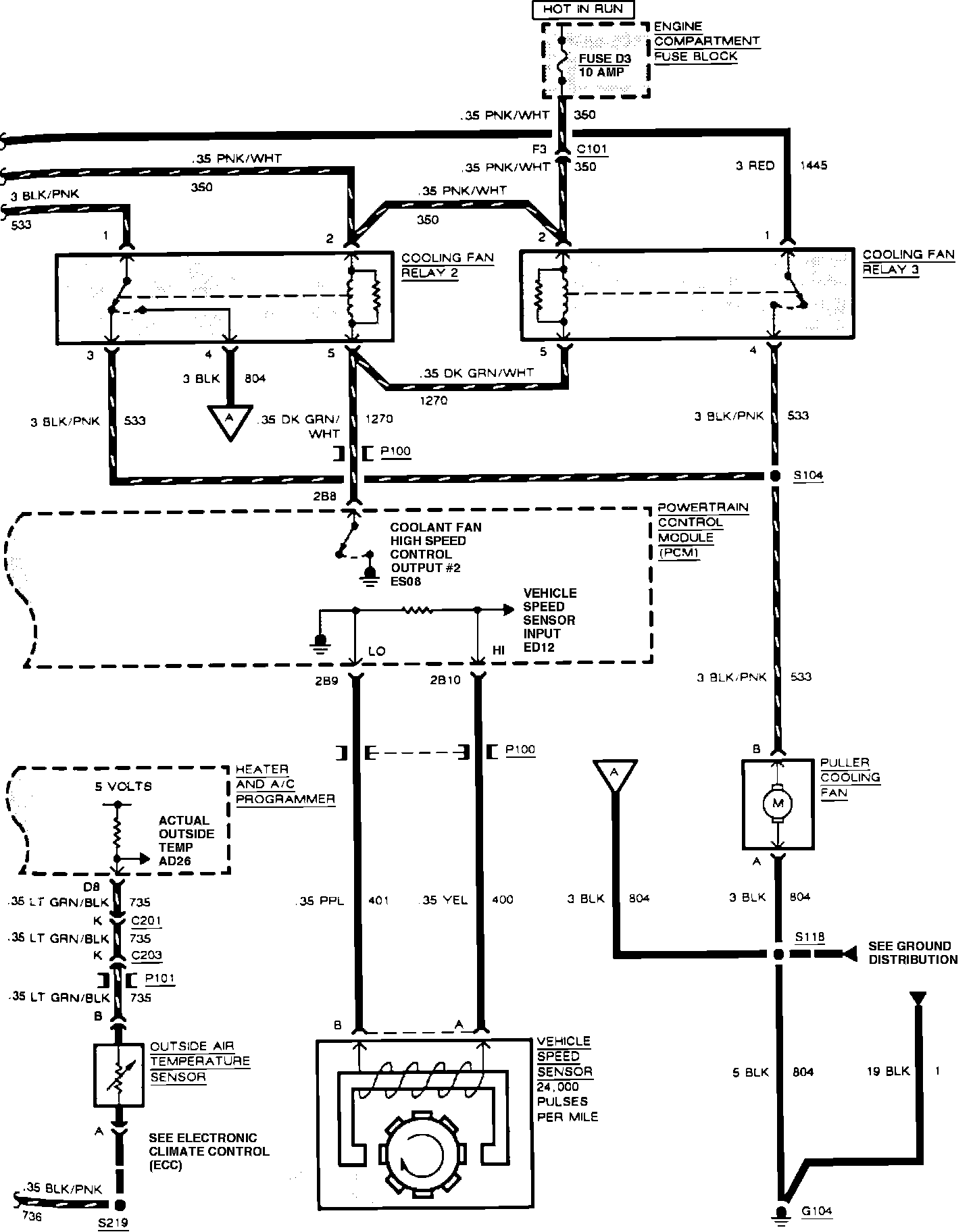

Fig. 64 Coolant Fan Wiring Circuit (Part 1 Of 2). 1992 Eldorado & Seville:



Fig. 64 Coolant Fan Wiring Circuit (Part 2 Of 2). 1992 Eldorado & Seville:
