S117
S117

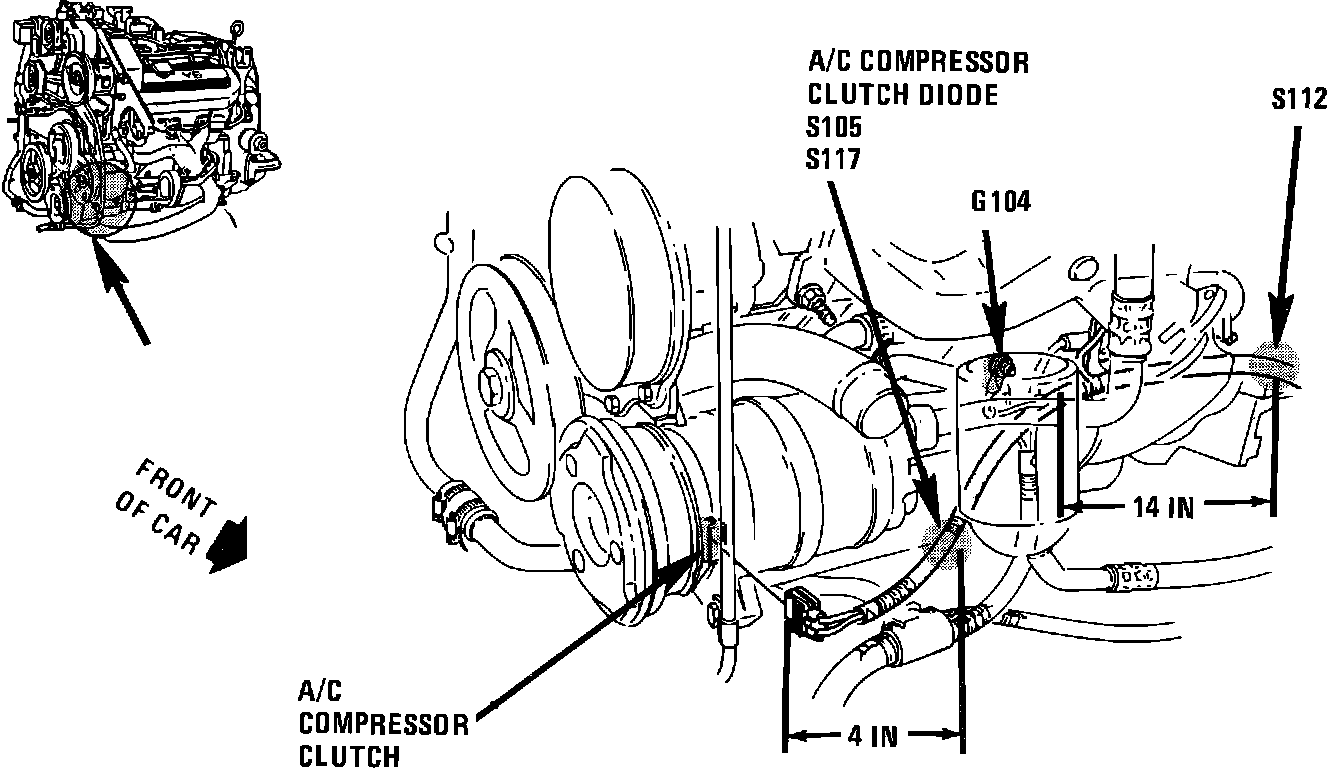

Lower RH Front Of Engine:
Engine harness, lower RH front of engine, 4 inches from A/C Compressor Clutch connector
