Home
>>
Cadillac
>>
1992
>>
Eldorado V8-300 4.9L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S100-S199
>>
S120
S120

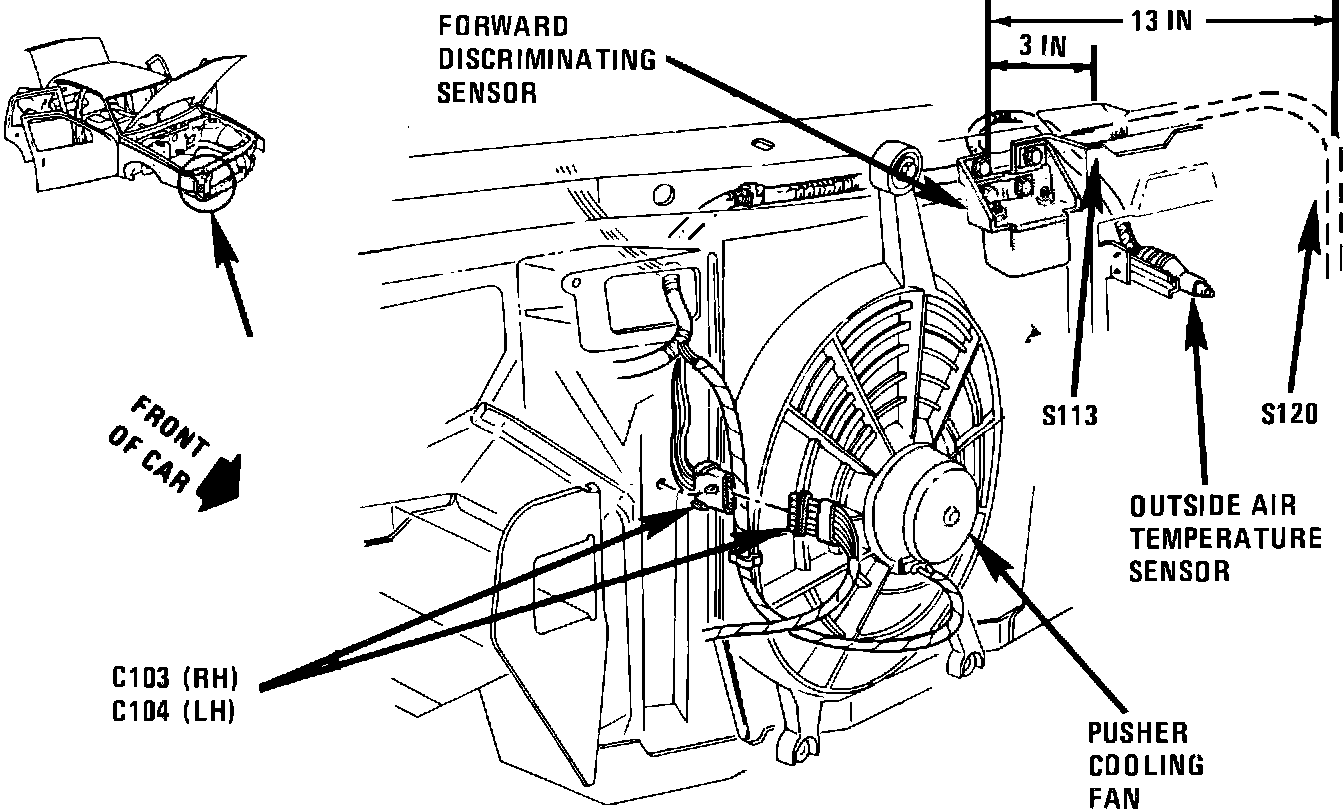

RH Front Of Car:
Body main harness, on radiator support, 10 inches left of Outside Air Temperature Sensor breakout
