Cadillac
>>
1992
>>
Eldorado V8-300 4.9L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S400-S499
>>
S422
S422

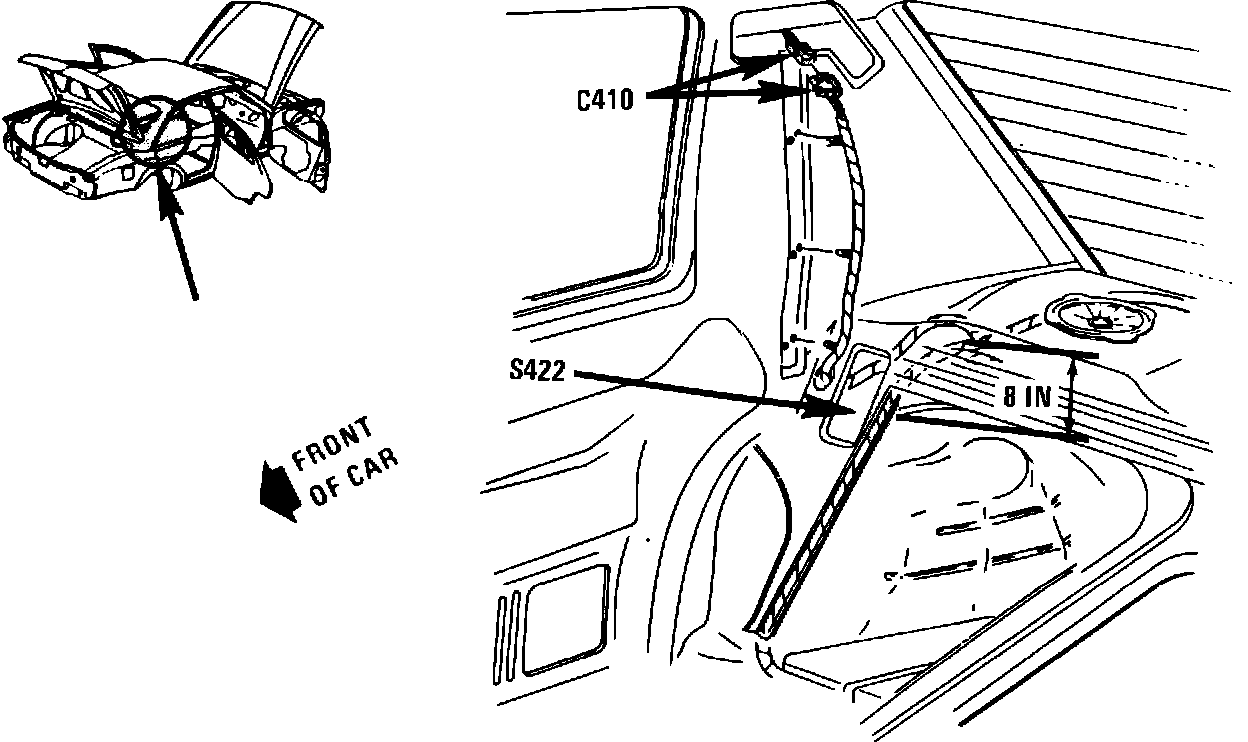

RH Sail Panel.:
Body main harness, behind top corner of RH rear seat, 8 inches forward of C410 breakout
