S118
S118

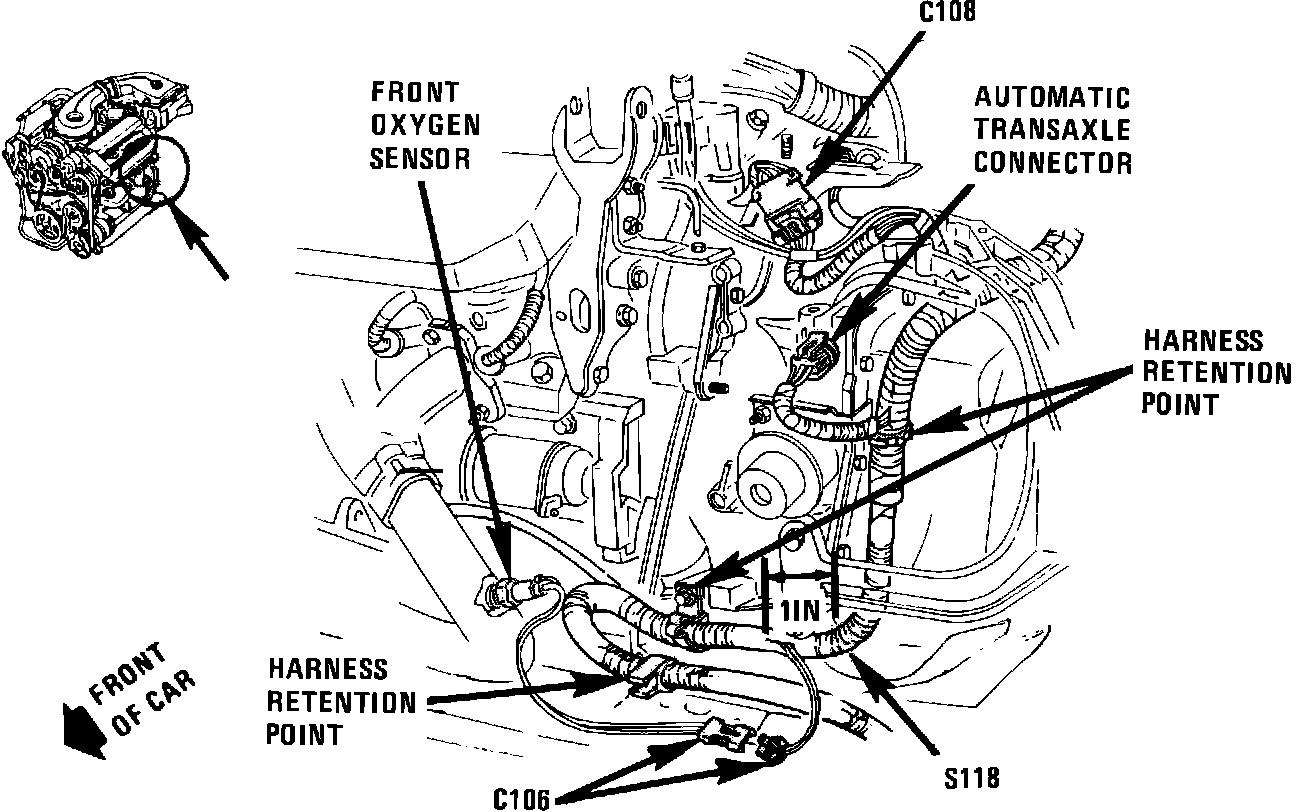

LH Front Of Engine:
Engine harness, lower LH front of engine, 1 inch right of Front Oxygen Sensor breakout
