Cadillac
>>
1992
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
S100-S199
>>
S125
S125

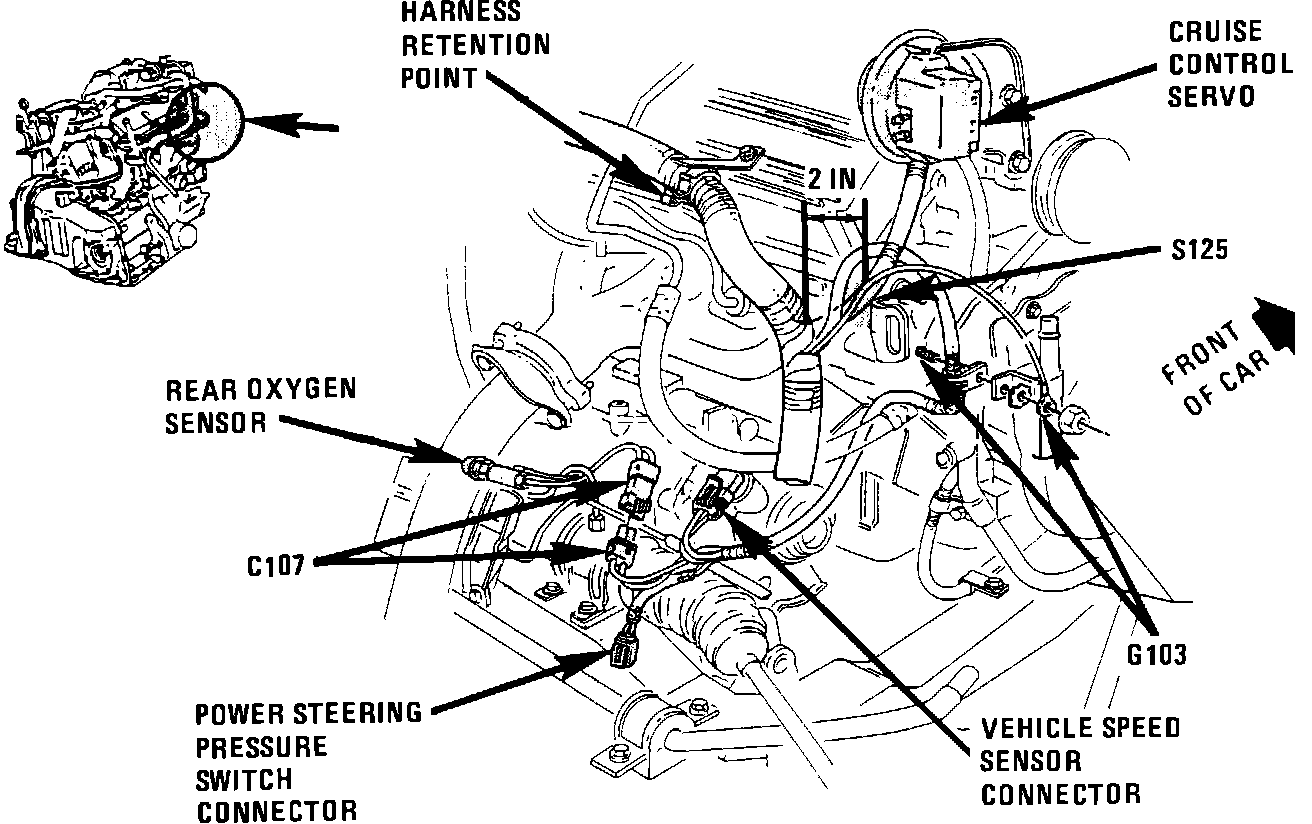

Front RH Side Of Engine:
Engine harness, in Cruise Control Servo branch, 2 inches from servo breakout
