S207
S207
I/P Harness.:

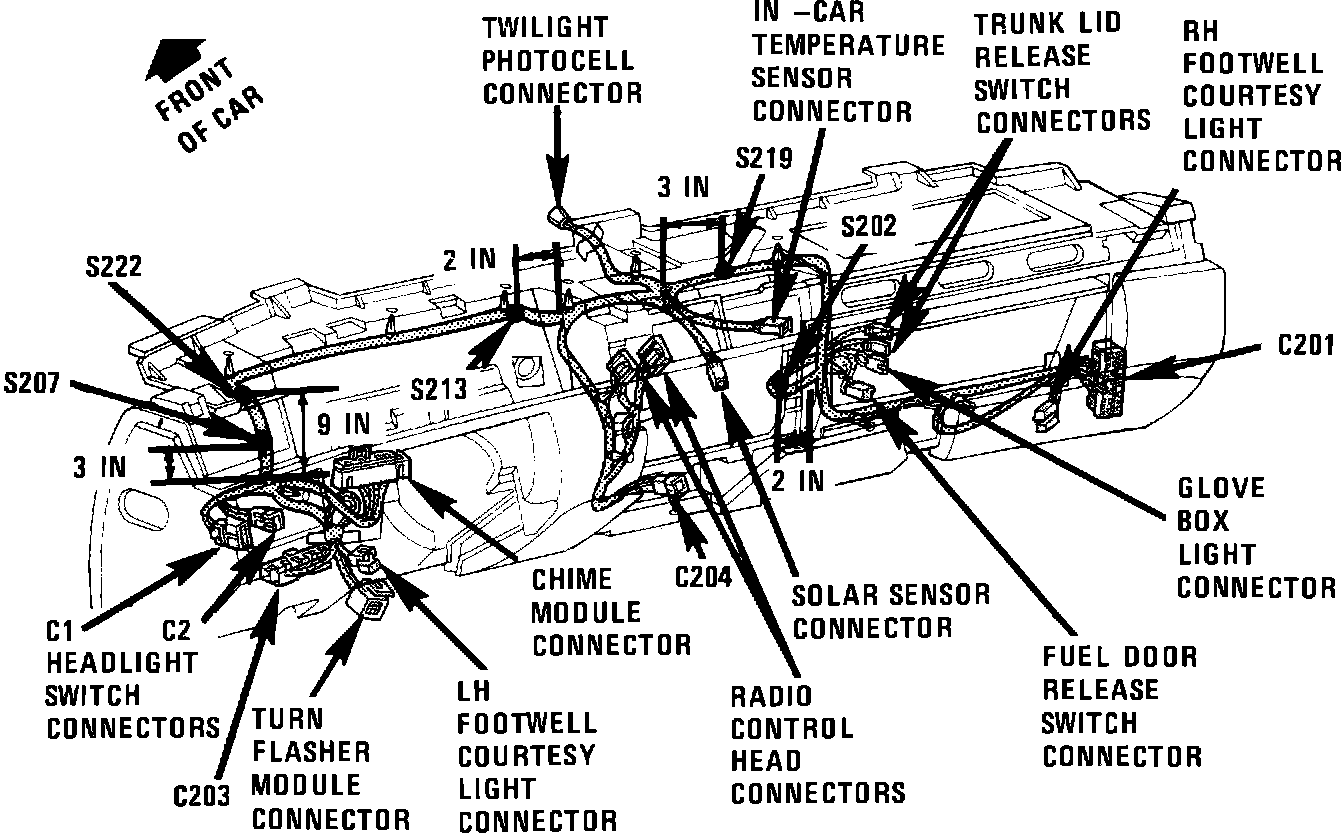

I/P harness, behind LH side of I/P, 3 inches right of headlight switch branch
