Home
>>
Cadillac
>>
1992
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S400-S499
>>

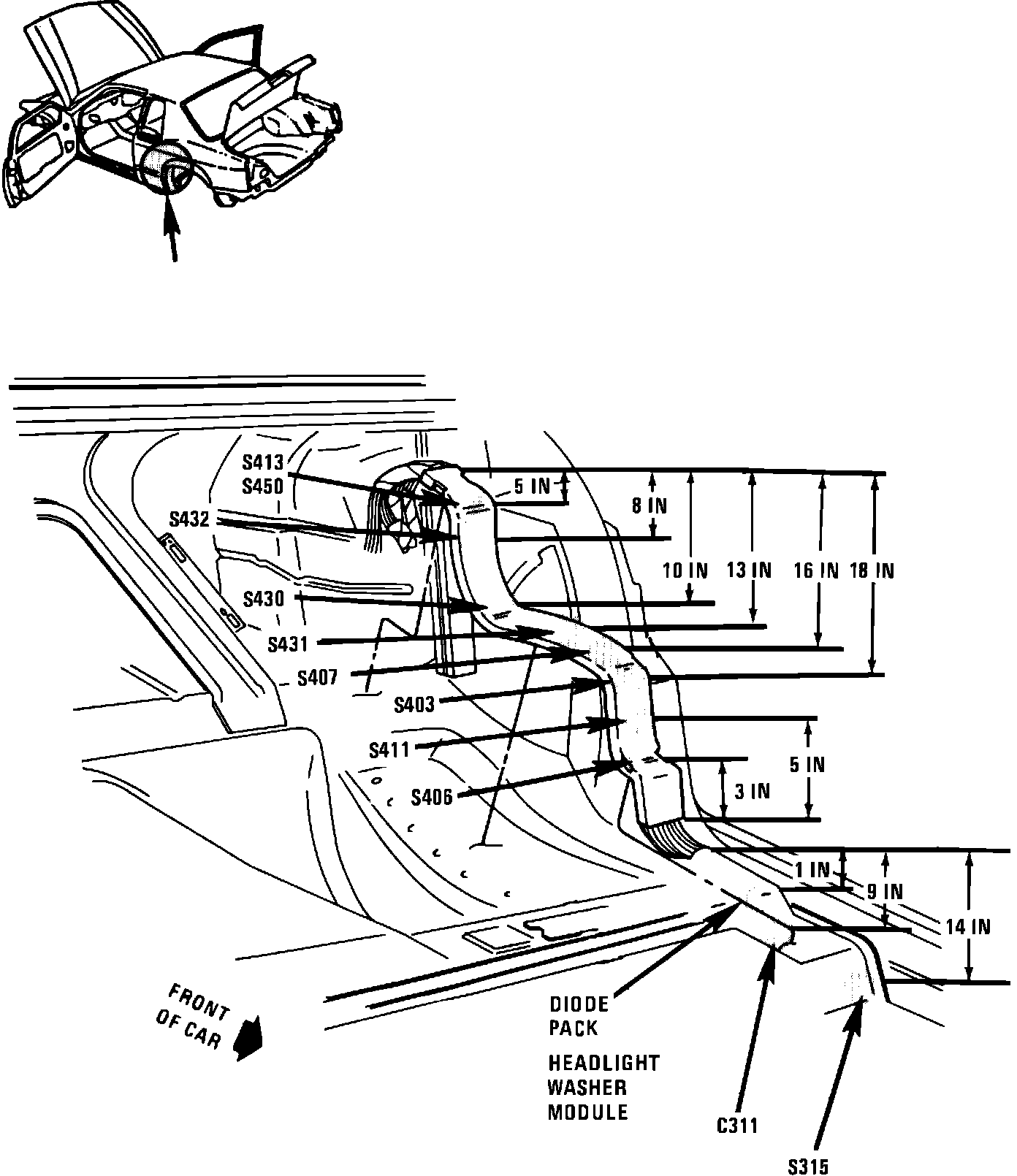

S432
S432
LH Rear Seat Area.:
Body main harness, under LH rear seat, 8 inches forward of rear edge of LH seat pan channel
