Home >> Cadillac >> 1992 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

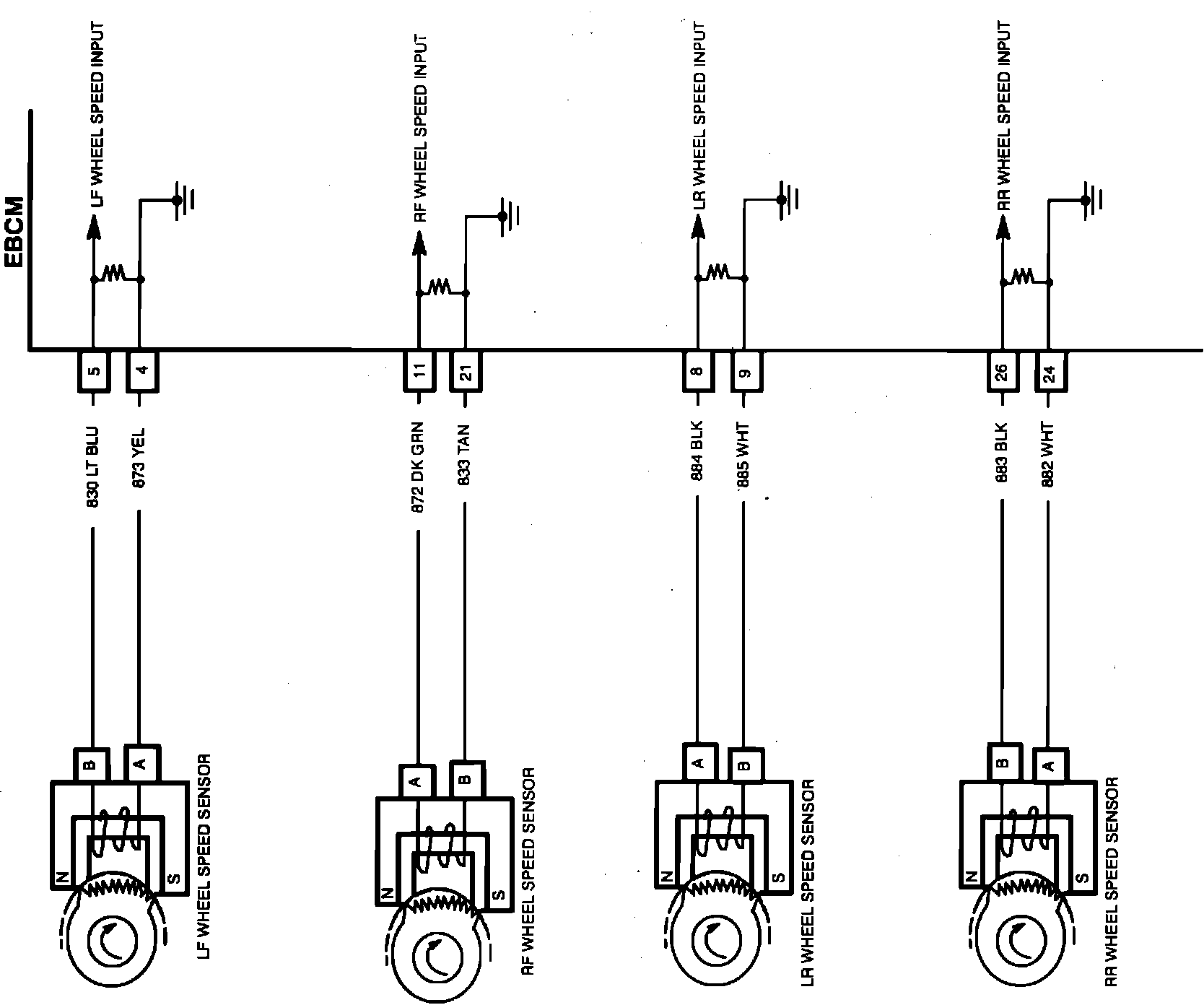

Fig. 69 ABS Wiring Circuit (Part 1 Of 2). 1992 Eldorado & Seville:

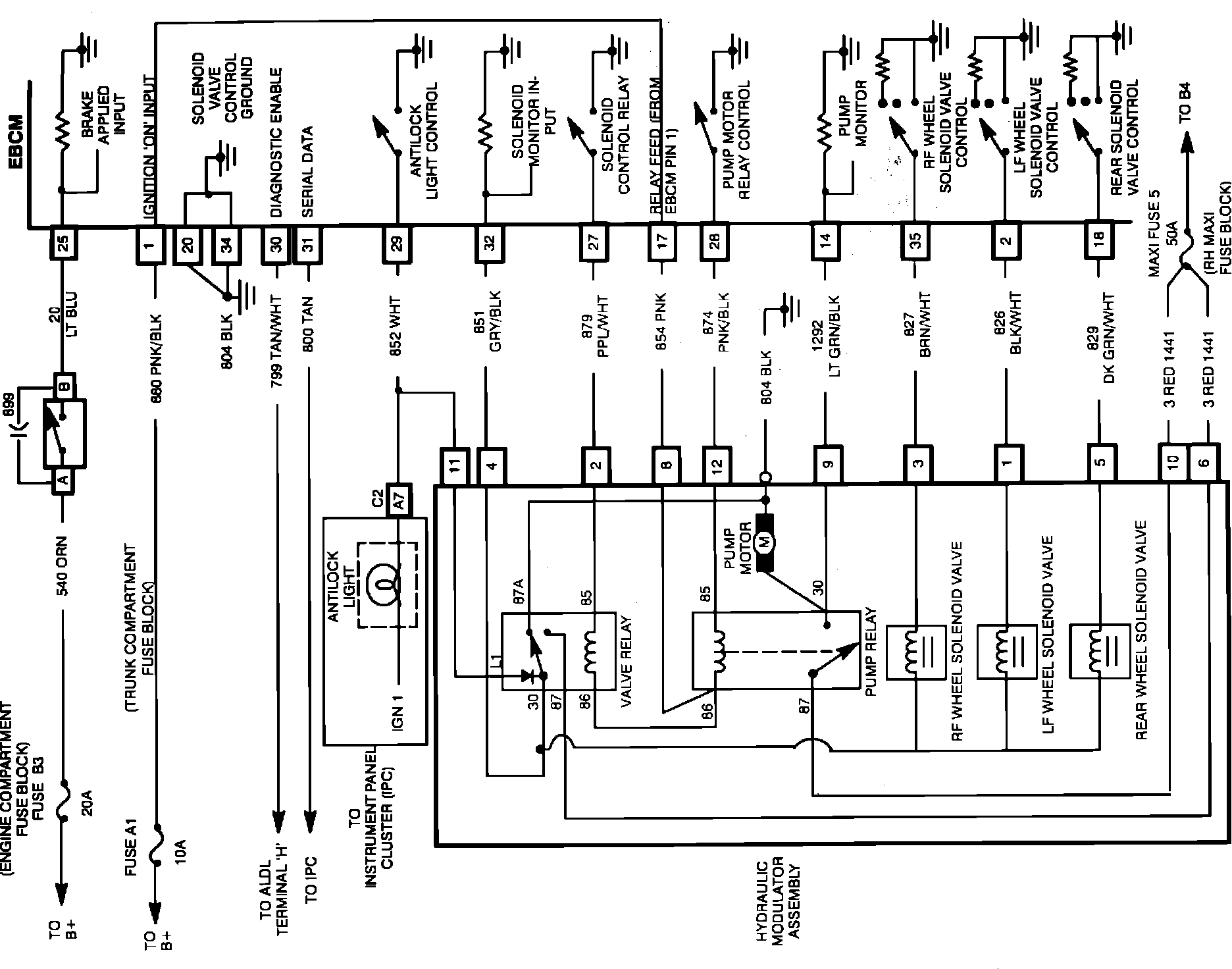

Fig. 69 ABS Wiring Circuit (Part 2 Of 2). 1992 Eldorado & Seville:
