Mini Console

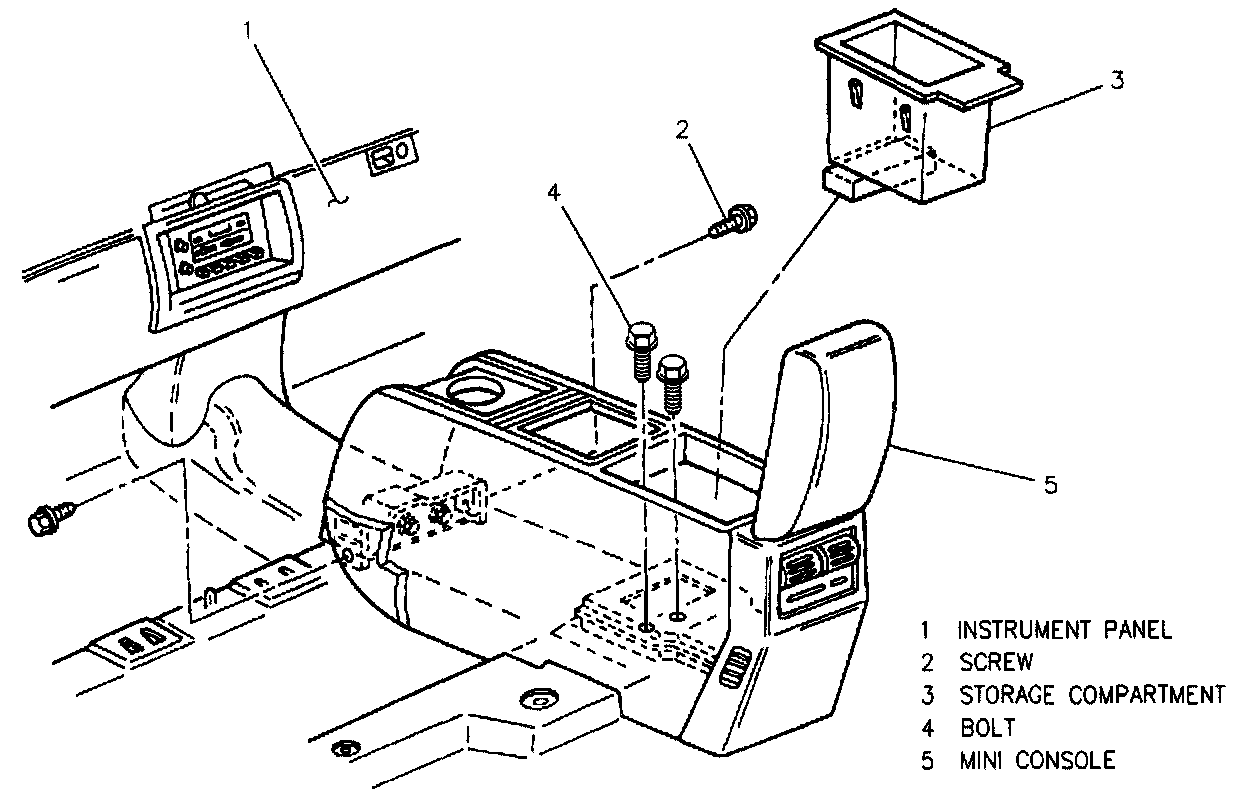

MINI CONSOLE






REMOVE OR DISCONNECT
1. Storage compartment by pulling up and out.
2. Two bolts through storage compartment opening.
3. Two bolts (one each side) retaining front of console to floor.
4. Electrical connectors.
5. Console.

INSTALL OR CONNECT
1. Position console in vehicle.
2. Electrical connectors.
3. Two bolts (one each side) retaining front of console to floor.
4. Two bolts through storage compartment opening.
5. Storage compartment.
