Automatic Transmission/Transaxle
>>

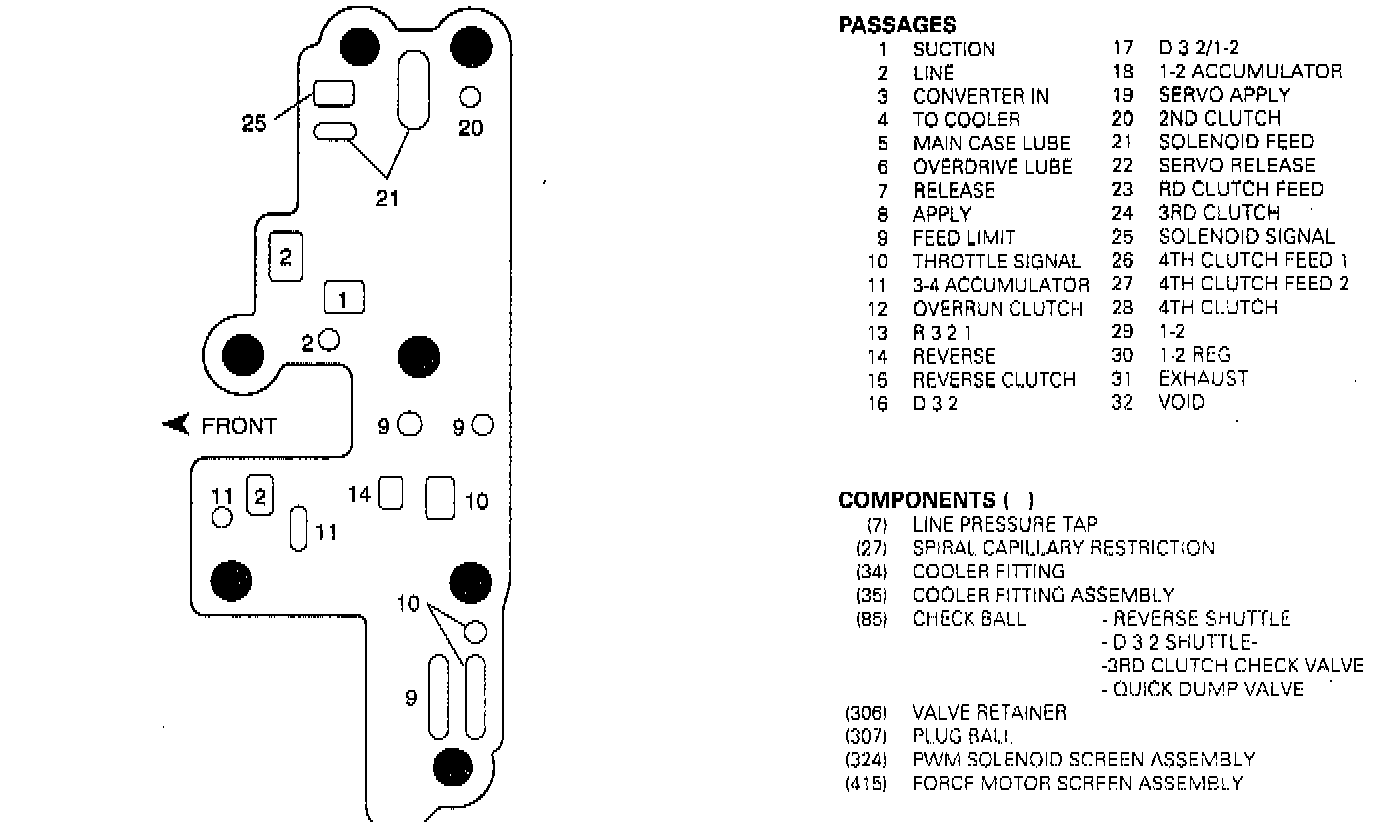

Component Fluid Passage Locations
>>
Gasket - Adapter Case/Transfer Plate
Gasket - Adapter Case/Transfer Plate
