Inlet

REMOVE OR DISCONNECT
1. Drain the cooling system.
2. Remove the radiator inlet hose from the radiator.

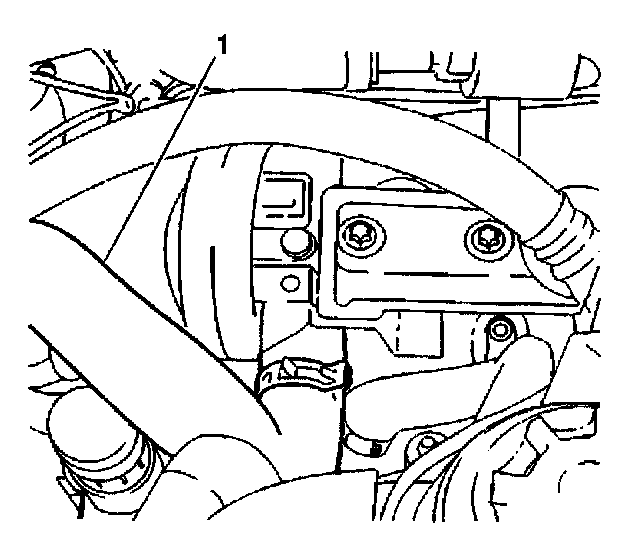

3. Remove the inlet hose from the thermostat housing extension (1).
4. Remove the inlet hose.

INSTALL OR CONNECT
1. Install the radiator inlet hose.
2. Install the radiator inlet hose to the thermostat housing extension (1).
3. Install the radiator inlet hose to the radiator.
4. Fill the cooling system.
