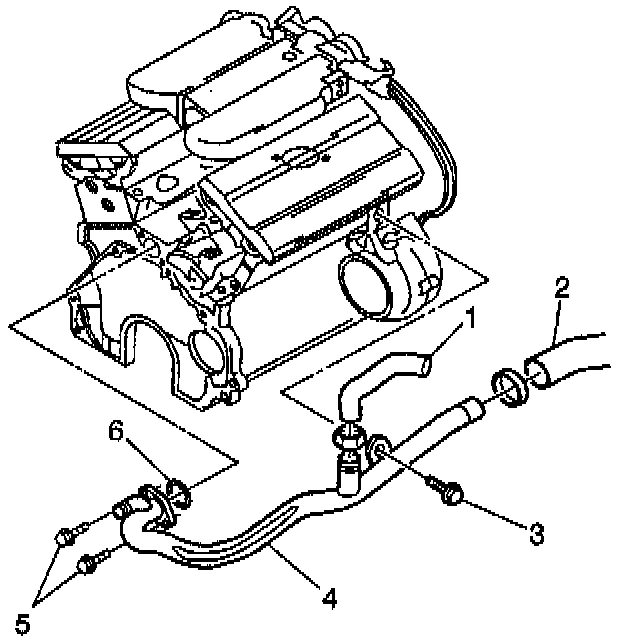

Outlet

REMOVE OR DISCONNECT
1. Drain the cooling system.
2. Remove the radiator outlet hose from the radiator.





3. Remove the outlet hose from the coolant intake pipe (4)
4. Remove the outlet hose (2).

INSTALL OR CONNECT
1. Install the radiator outlet hose (2).
2. Install the radiator outlet hose to the coolant intake pipe (4).
3. Install the radiator outlet hose to the radiator.
4. Fill the cooling system.
