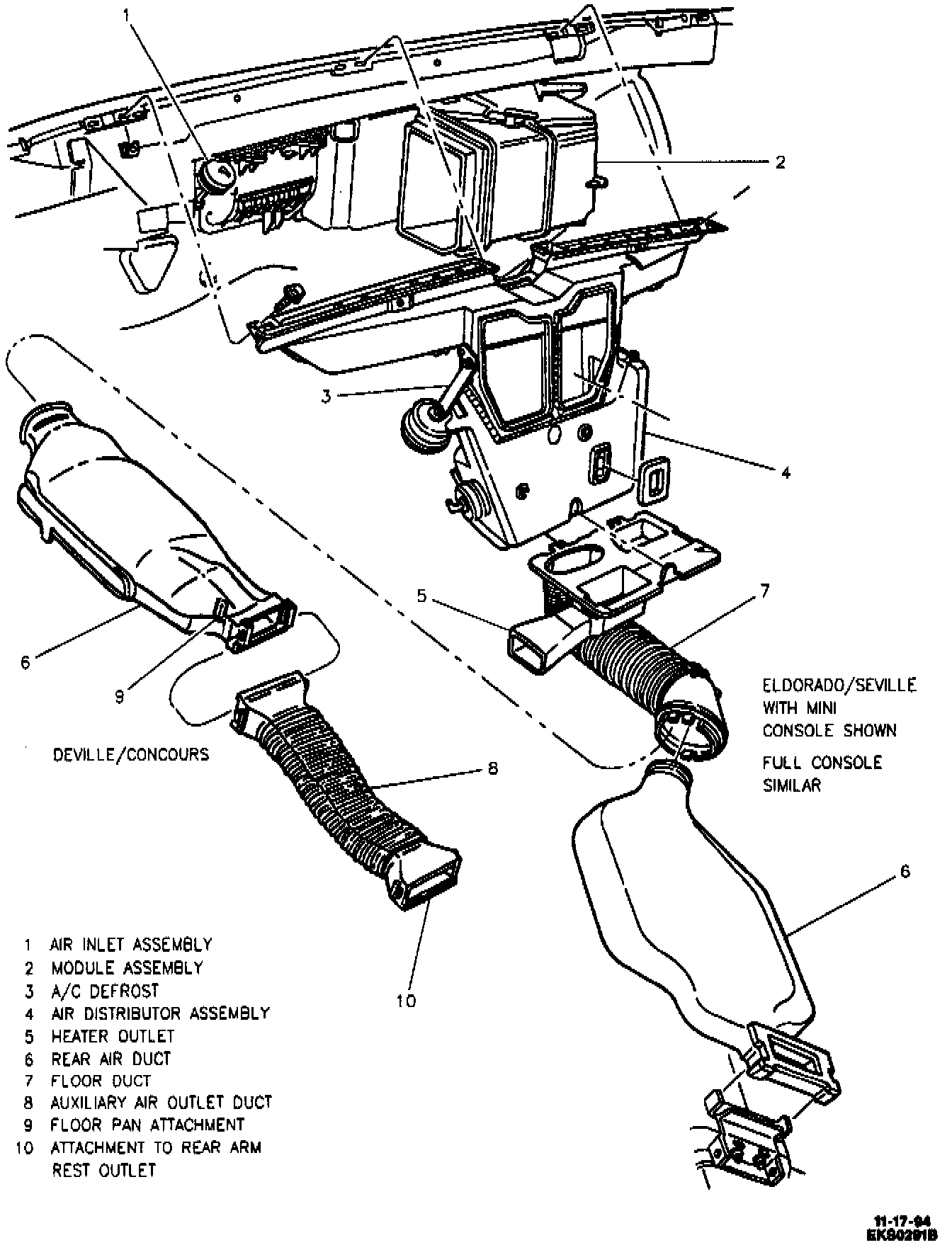

Air Distributor Assembly

Remove or Disconnect

1. Negative battery cable.
2. Console and instrument panel.
3. Parking Brake Assembly.
4. Cross car brace.
5. Wiring harness at retainers.
6. Vacuum lines from actuators.
7. Two vacuum lines from A/C distributor.
8. A/C distributor assembly retaining screws and distributor.

Install or Connect

1. Distributor assembly to vehicle.
2. Vacuum lines to distributor.
3. Vacuum lines to actuators.
4. Wiring harness at retainers.
5. Cross car brace.
6. Parking brake assembly.
7. Instrument panel and console.
8. Negative Battery cable.
