Catera V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
After-Run Coolant Pump

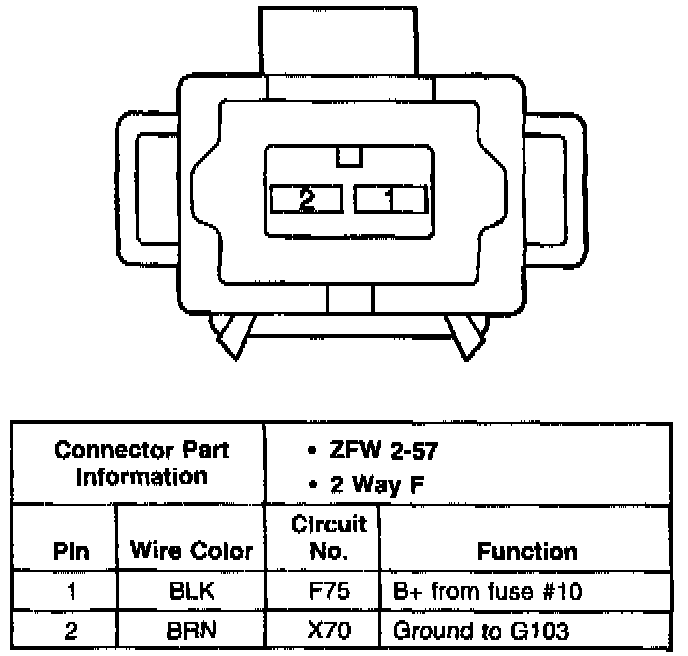

After-Run Coolant Pump

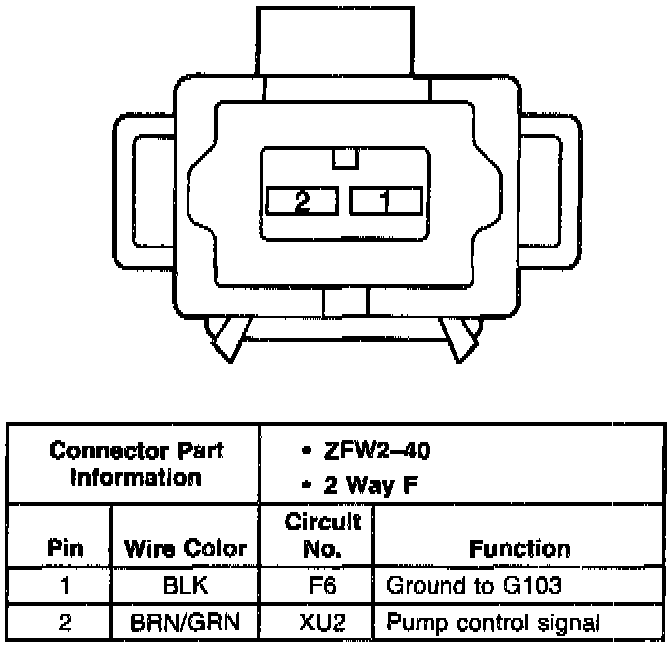

Heater Water Auxiliary Pump:
Water Auxiliary Pump:

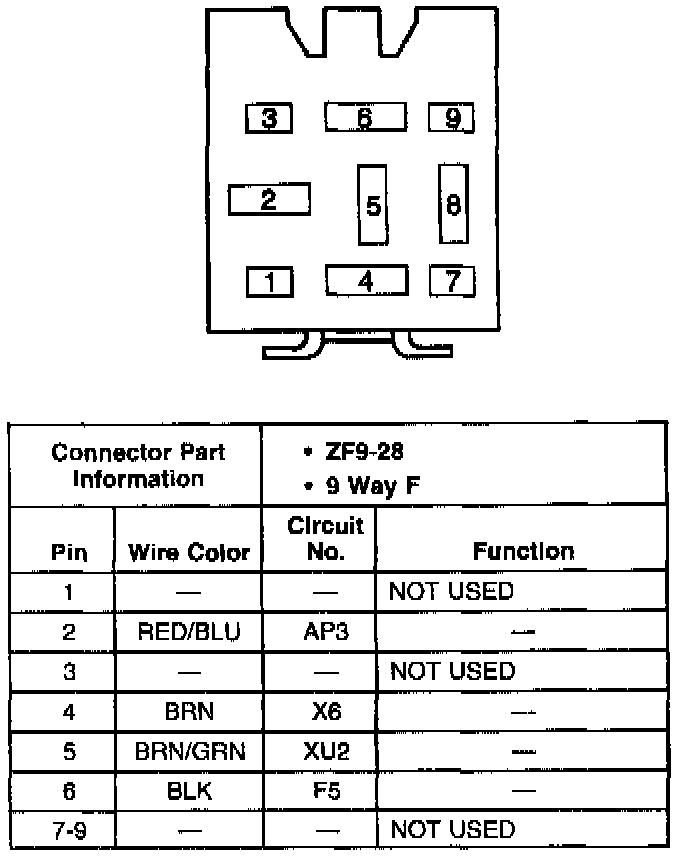

Auxiliary Water Pump Relay K22:
