Home >> Cadillac >> 1998 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Switch >> Rear >> LH

LH

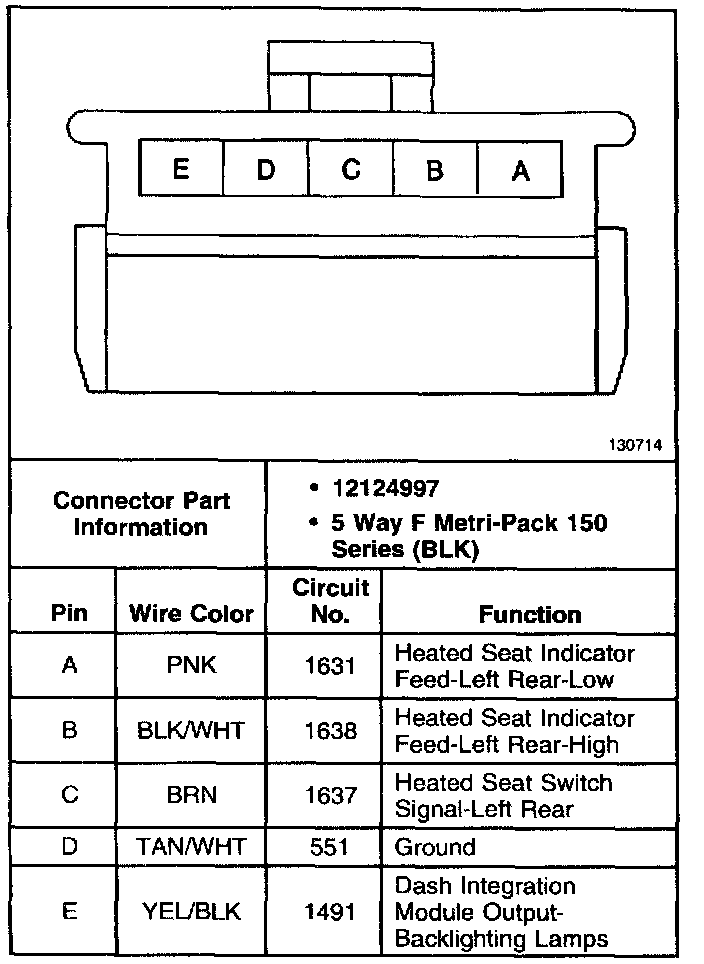

LH Rear Heated Seat Switch:
