Front Blower Motor Replacement

Removal Procedure





1. Remove the right side sound insulator.
2. Pull back the carpet near the blower motor.

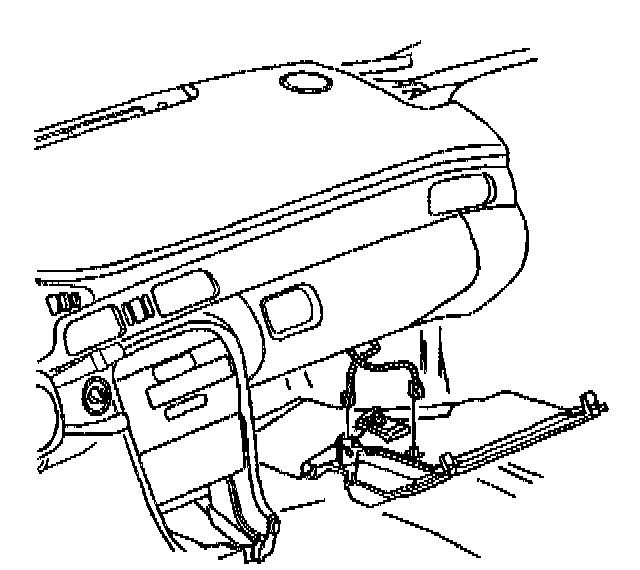

3. Remove the IP compartment.

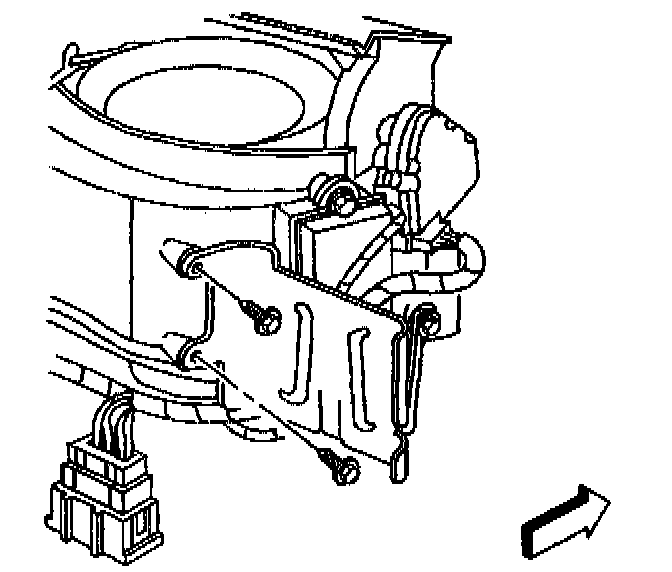

4. Remove the dash integration module from bracket.
5. Remove the two rear dash integration module bracket screws.
6. Reposition the dash integration module bracket to allow for removal of the blower motor.





7. Disconnect the electrical connector (2) from the blower motor.

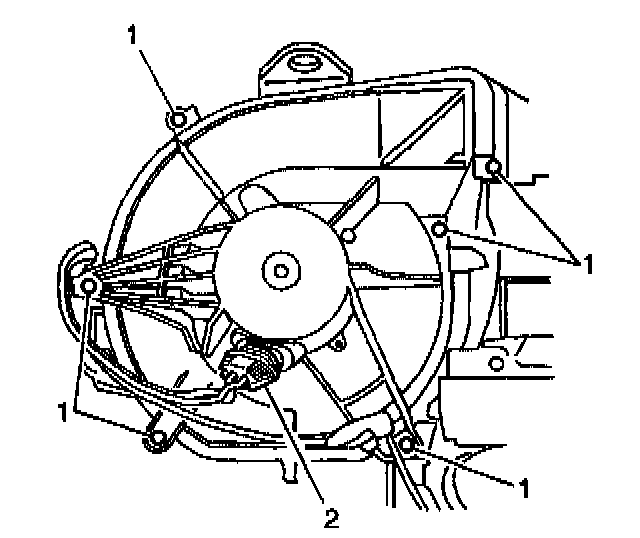

8. Remove the blower motor retaining screws (1).
9. Remove the blower motor from vehicle.

Installation Procedure

1. Install the blower motor.

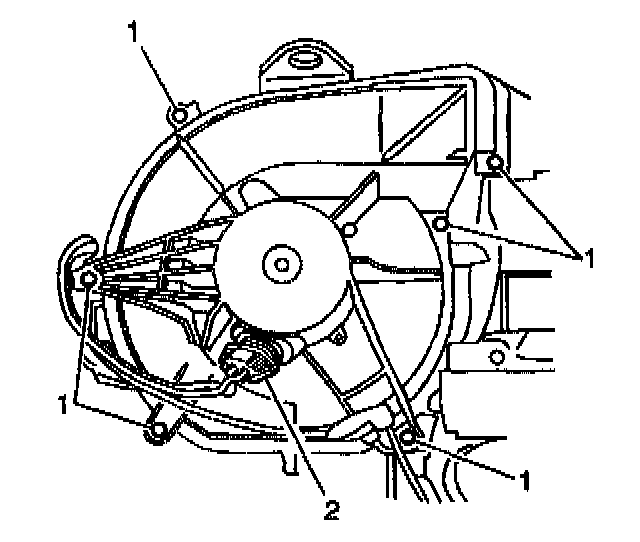

2. Install the blower motor retaining screws (1).
3. Connect the electrical connector (2) to the blower motor.

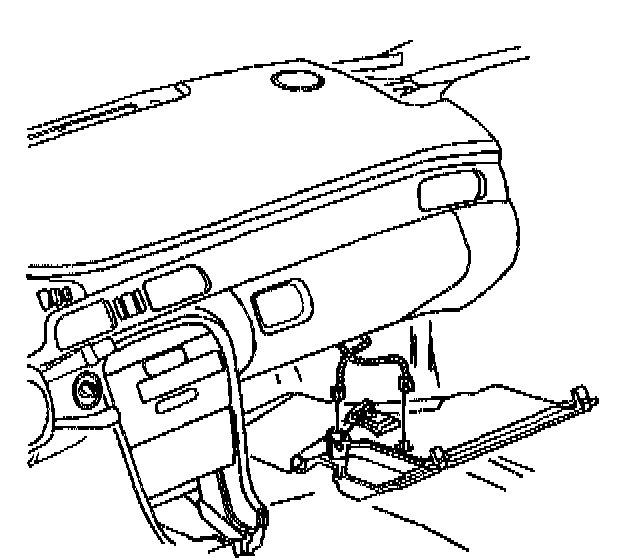

4. Install the IP compartment.
5. Install the dash integration module from bracket.

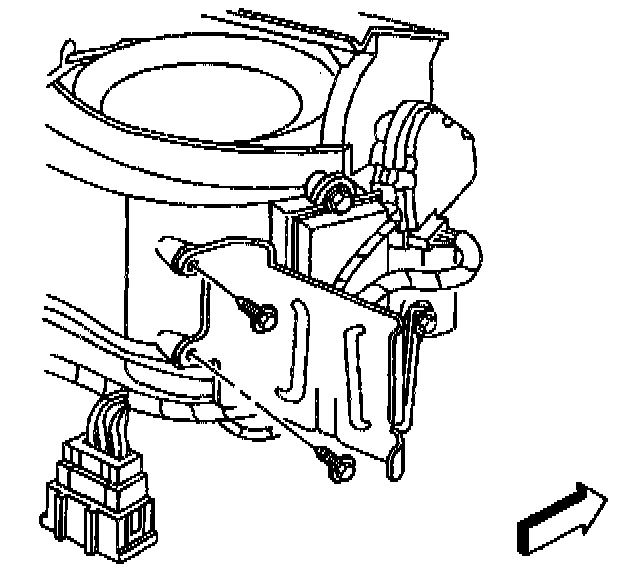

6. Reposition the dash integration module bracket to its original position.
7. Install the two rear dash integration module bracket screws.





8. Reposition the carpet.
9. Install the right side sound insulator.
