Installation Procedures

Important: The electrical contact must rest on the turn signal cancel cam assembly.

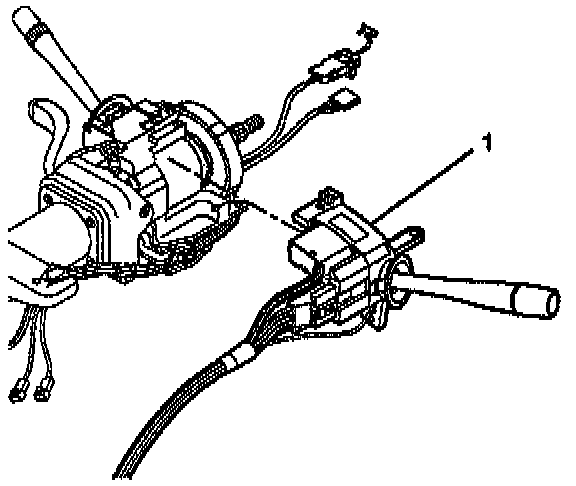

1. install the turn signal and multifunction switch assembly (1).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

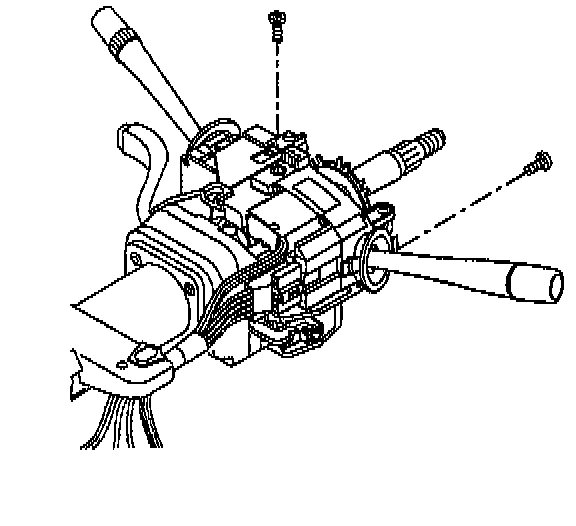

2. Install the two TORX(R) screws (1).

Tighten the screws to 7 Nm (62 inch lbs.).

3. Install the wire harness assembly along the steering column jacket assembly.

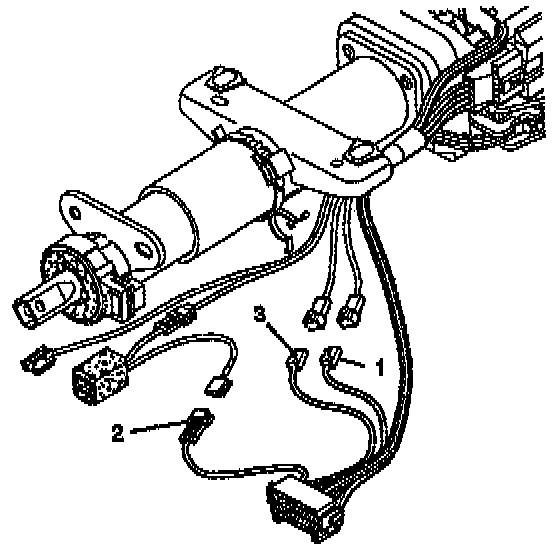

4. Install the blue (1), black (2) and gray (3) connectors of the turn signal and multifunction switch assembly.

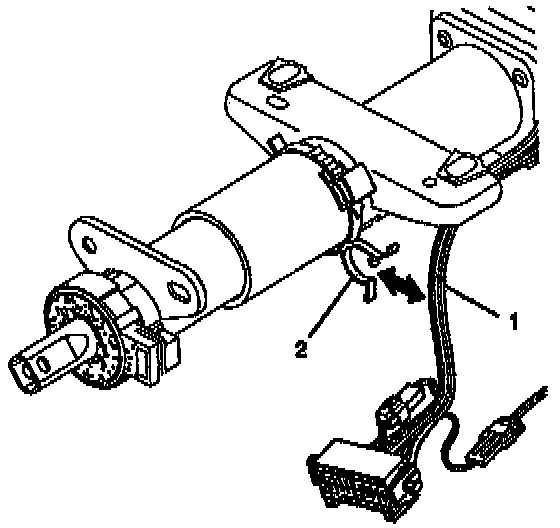

5. Insert the wire harness assembly (1) into the wire strap holder (2).

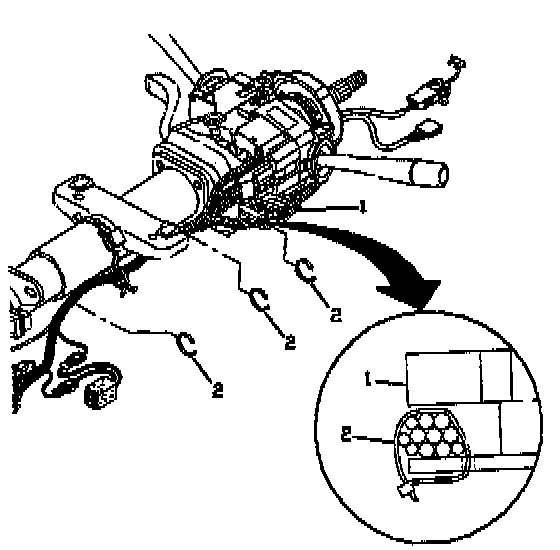

6. Install the two wire harness straps (2), Install one wire harness strap (2) to the steering column tilt head assembly (1).

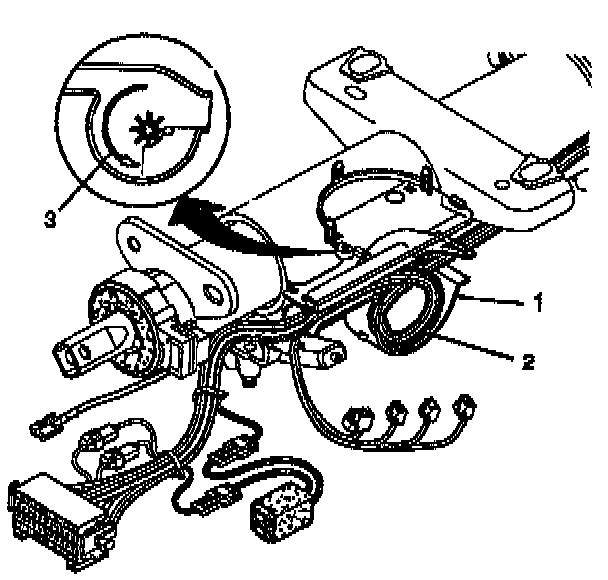

7. When working on the power tilt and telescope column install the wire harness assembly (2) into the lower wire shield (1), In the lower wire shield (1) notice the direction (3) and placement the wires go in.

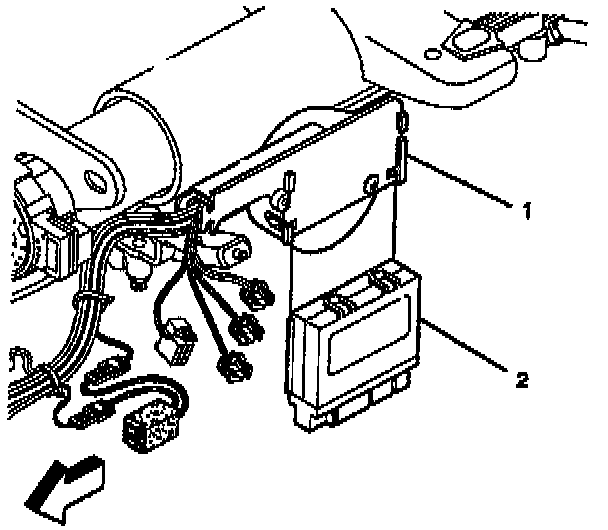

8. When working on the power tilt and telescope column slide the E&C interface module assembly (2) into the wire shield (1).

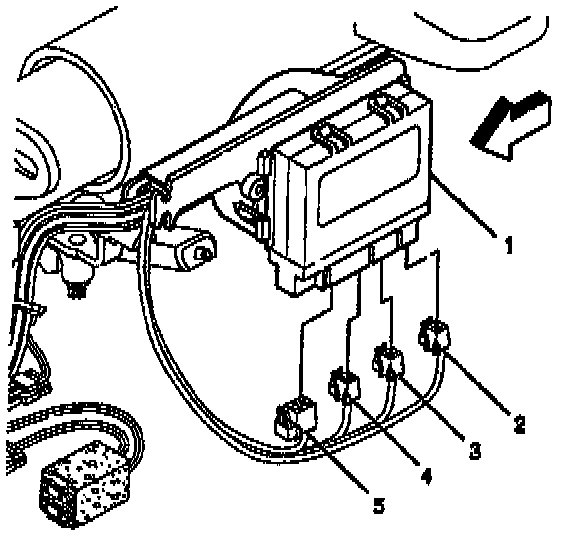

9. When working on the power tilt and telescope column install the green (5), brown (4), natural (3) and black (2) connectors into the E&C interface module assembly (1).

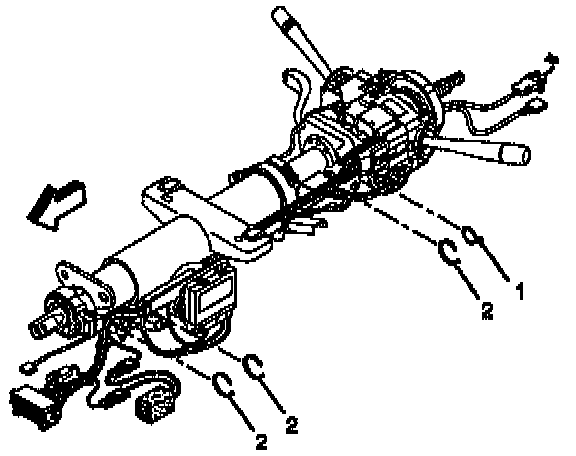

10. When working on the power tilt and telescope column install the three wire straps (2) onto the, wire harness assembly.
11. Install the wire harness strap (1) into the steering column tilt head assembly.
12. Install the upper and lower shrouds. Refer to STEERING COLUMN SHROUD REPLACEMENT.

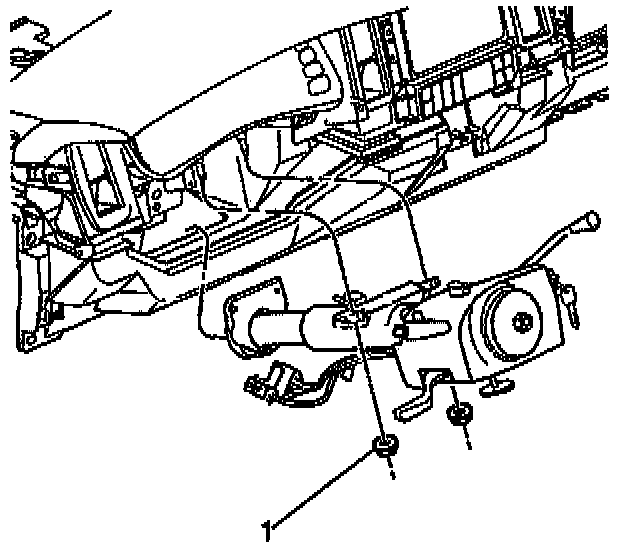

13. Remove the two nuts (1) securing the steering column to the instrument panel.
14. Install the tilt lever.
15. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT.
16. Install the kneebolster. Refer to KNEE BOLSTER REPLACEMENT (LHD) in INSTRUMENT PANELS AND GAUGES.
17. Install the negative battery cable.

CAUTION: Before removing or installing any electrical unit or when a tool or equipment could easily come in contact with "live" exposed electrical terminals, disconnect the negative battery cable to help prevent personal injury and/or damage to the vehicle or components. Unless instructed otherwise, the ignition switch must be in the "OFF" or "LOCK" position.

18. Enable the SIR. Refer to Enabling the SIR SYSTEM in RESTRAINTS.
