Wiper Blade Assembly Replacement

REMOVAL PROCEDURE

Wiper Arm Blade Replacement: Removal Procedure:

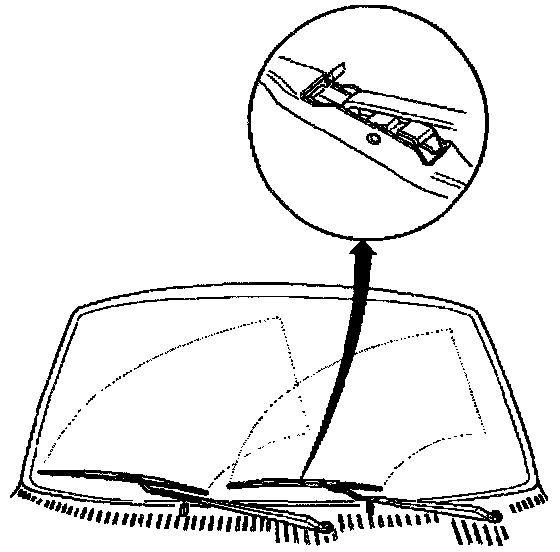

Remove the wiper blade assembly from the wiper arm assembly.
1. Push in the button of the wiper blade assembly clip and remove the wiper blade assembly from the inside radius of the wiper arm assembly.
2. Bring the wiper arm assembly out through the opening in the wiper blade assembly.

INSTALLATION PROCEDURE

Wiper Arm Blade Replacement: Installation Procedure:

1. Install the wiper blade assembly on the wiper arm assembly.
2. Operate the wipers and check for proper operation.
