Wiper Blade Element Replacement

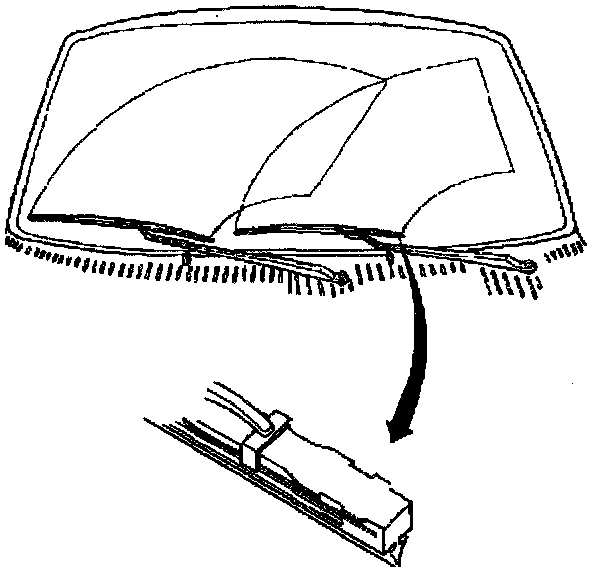

REMOVAL PROCEDURE

Wiper Blade Element Replacement: Removal Procedure:

IMPORTANT: The wiper blade element must be replaced if removed from the wiper blade assembly.

1. Remove the wiper blade assembly from the wiper arm assembly.
2. Remove the wiper blade element by pulling it out through the wiper blade assembly claws.

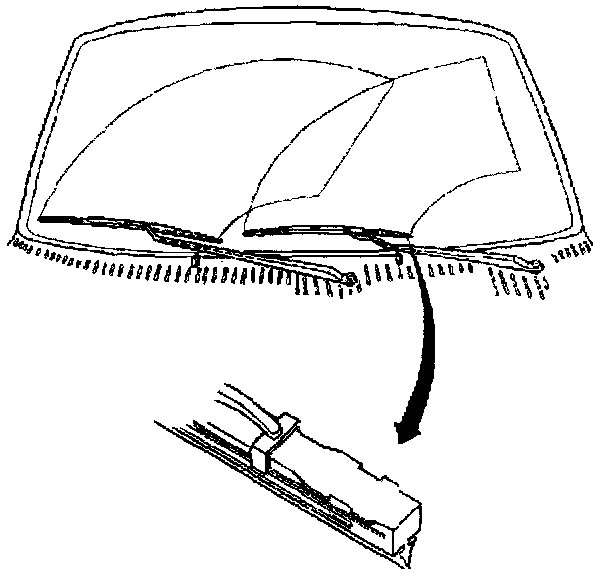

INSTALLATION PROCEDURE

Wiper Blade Element Replacement: Installation Procedure:

1. Install the wiper blade element into the wiper blade assembly by sliding the wiper blade element through the wiper blade assembly claws until the claw is locked into the notches in the wiper blade element.
2. Install the wiper blade assembly onto the wiper arm assembly.
