Wiper Motor Linkage: Service and Repair

REMOVAL PROCEDURE

Wiper Transmission Replacement: Removal Procedure:

Tools Required
J 39232 Wiper Transmission Separator

1. Remove the wiper arm and blade assemblies.
2. Remove the air inlet screen.

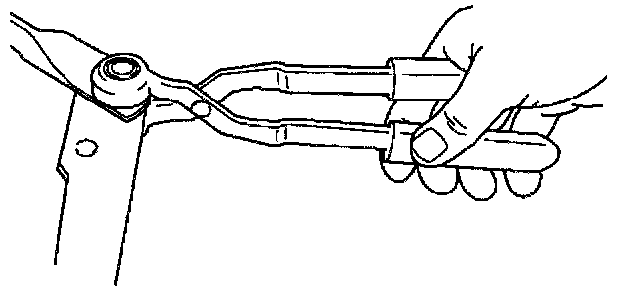

3. Remove the transmission drive link socket from the wiper motor assembly crank arm using the J 39232.

Wiper Transmission Replacement: Removal Procedure:

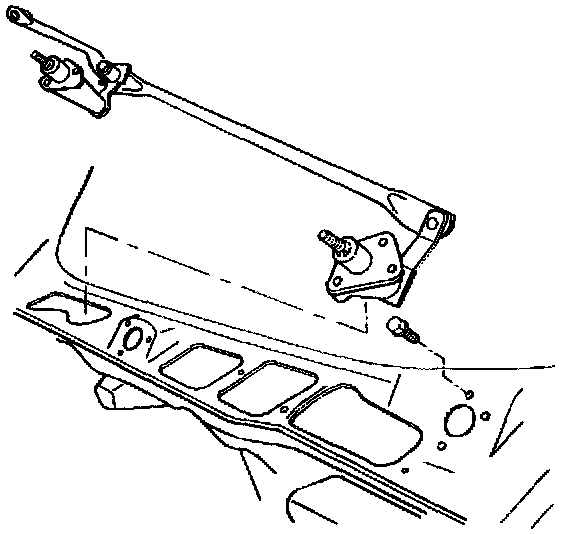

IMPORTANT: Rotate the transmission as necessary to extract from the plenum.

4. Remove six screws and the transmission from the vehicle.

INSTALLATION PROCEDURE

Wiper Transmission Replacement: Installation Procedure:

Tools Required
J 39529 Wiper Transmission Installer

1. Install the transmission on the vehicle with six screws.

Tighten
Tighten the screws to 8 N.m (70 lb in).

Wiper Transmission Replacement: Installation Procedure:

2. Install the transmission drive link socket to the wiper motor assembly crank arm ball using the J 39529. Be sure the socket is fully seated on the ball.
3. Install the air inlet screen.
4. Install the wiper arm and blade assemblies.
