Power Seat Motor: Service and Repair

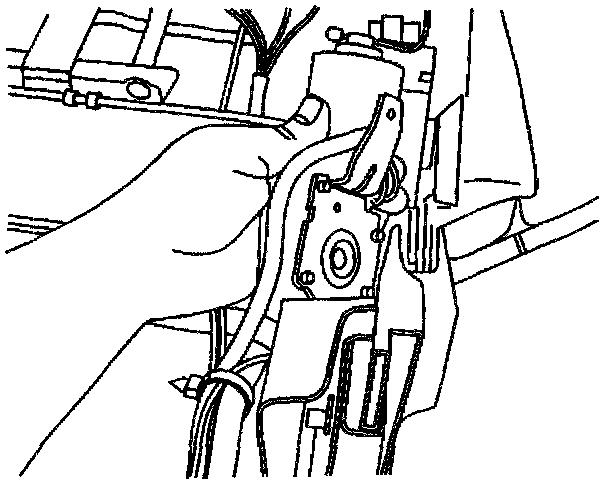

REMOVAL PROCEDURERecliner Motor Replacement - Front Power: Removal Procedure:
1. Remove the recliner position sensor.
2. Remove the fastener for the recliner actuator motor assembly.
3. Disconnect the electrical connector for the actuator from beneath the seat.

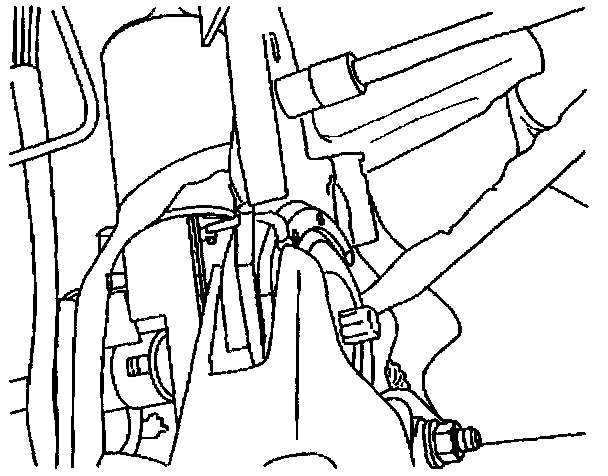

Recliner Motor Replacement - Front Power: Removal Procedure:
4. Remove the actuator from the seat assembly.
INSTALLATION PROCEDURE

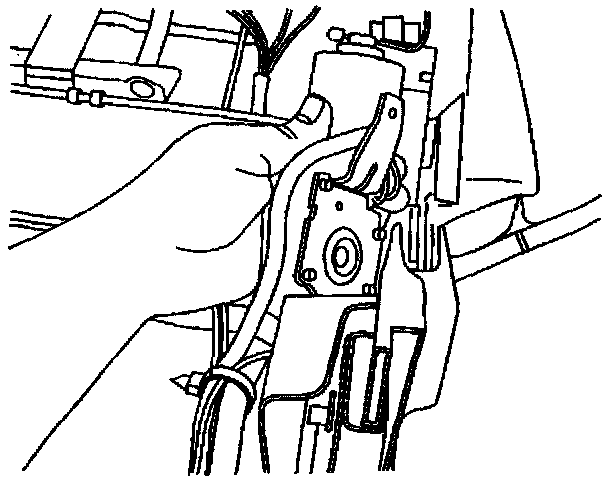

Recliner Motor Replacement - Front Power: Installation Procedure:
1. Install the actuator to the seat back frame.

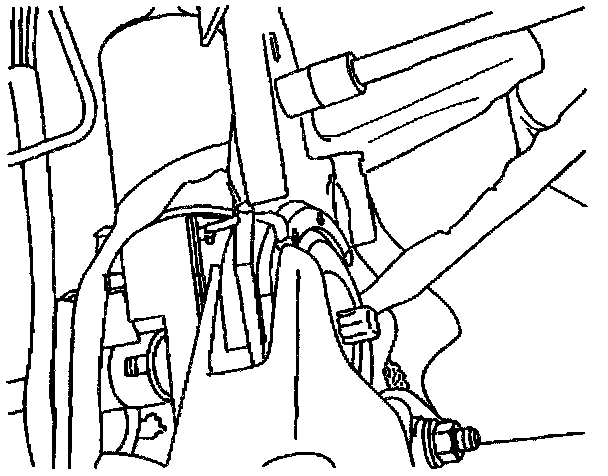

Recliner Motor Replacement - Front Power: Installation Procedure:
2. Install the fastener.
3. Connect the actuator electrical connector.
4. Install the recliner position sensor.
