Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Head Rest >> Headrest Motor >> RH

RH

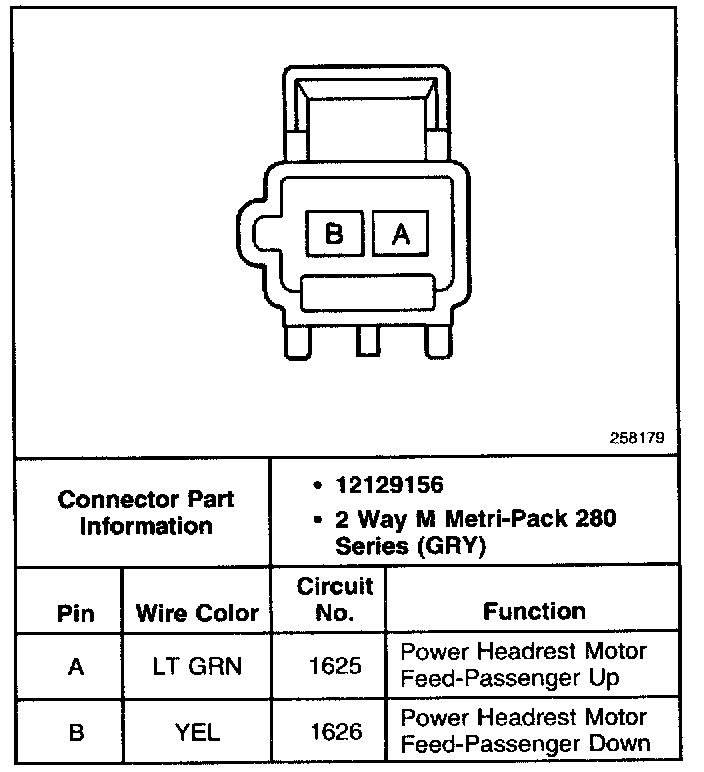

RH Headrest Motor:
