Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor >> Forward/Back Motor >> RH

RH

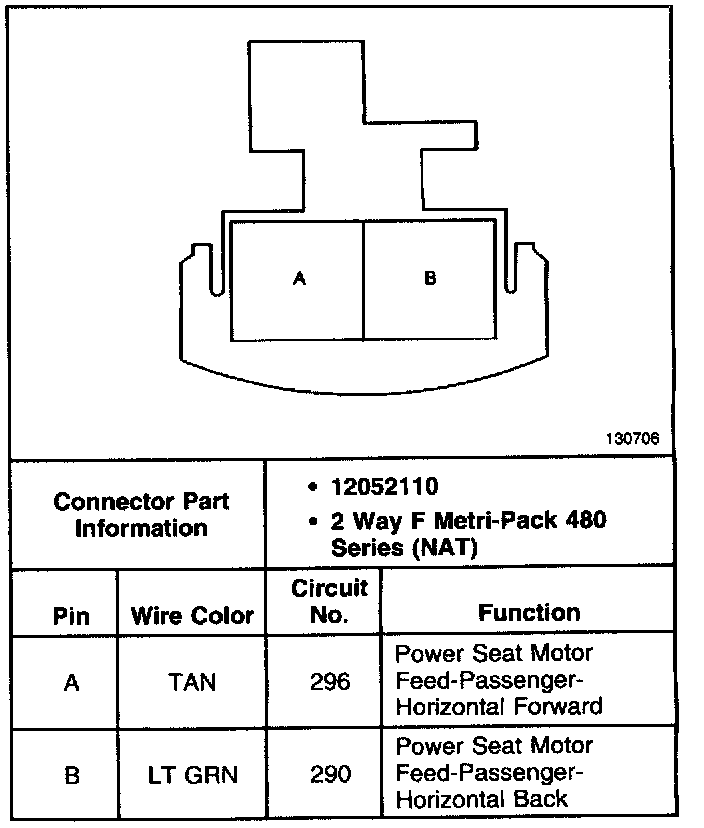

RH Forward/Back Motor:
