Home >> Cadillac >> 1998 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Lumbar Switch >> RH >> AL2

AL2

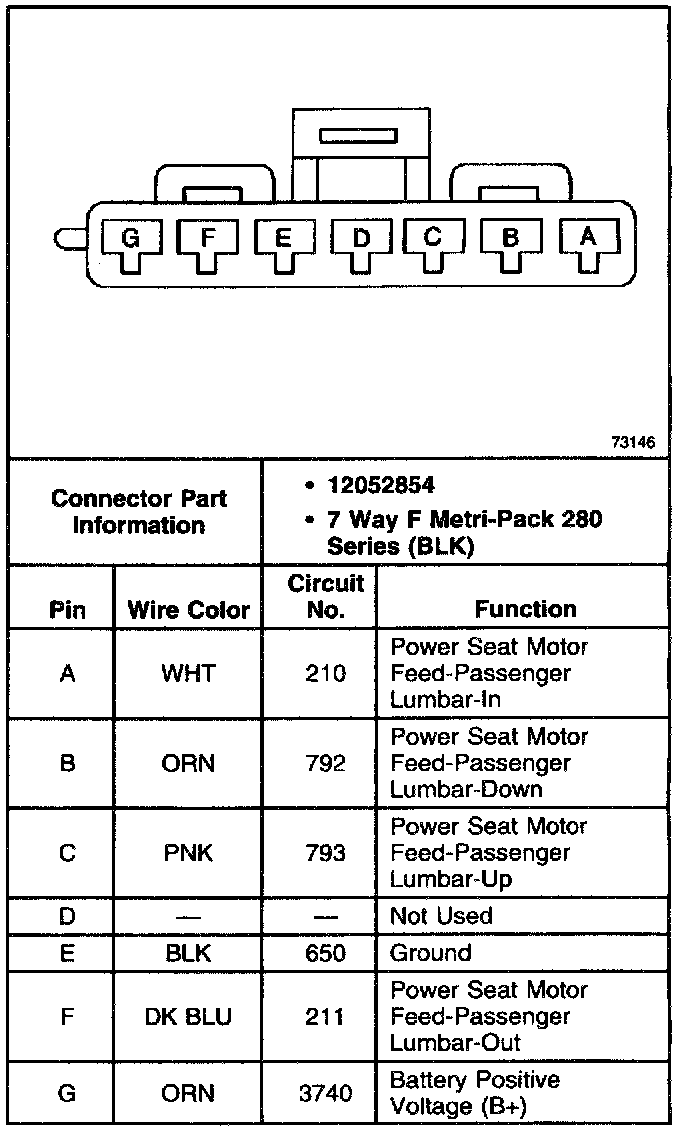

RH Lumbar Switch (AL2):
