Radiator Hose Replacement-Outlet

REMOVE PROCEDURE





1. Drain the cooling system.
2. Remove the upper filler panel.
3. Remove the air cleaner assembly.

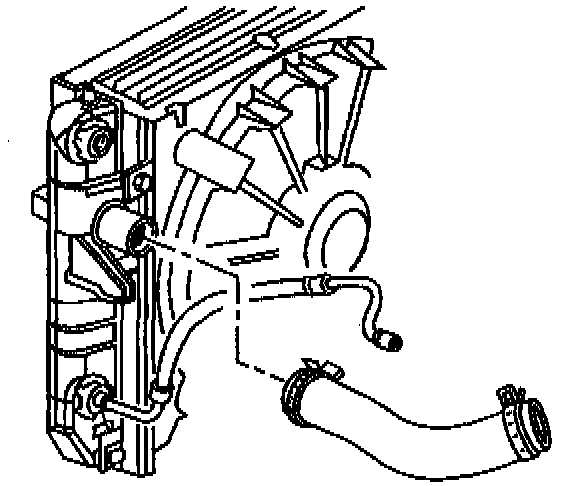

4. Disconnect the outlet radiator hose from the radiator.

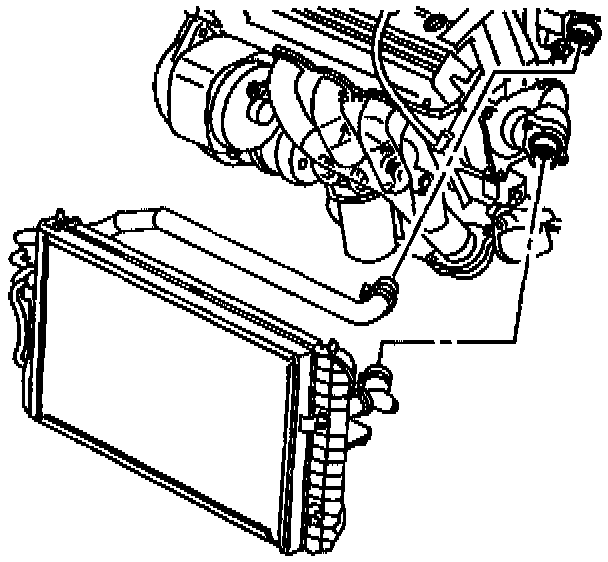

5. Disconnect the outlet radiator hose from the engine.
6. Remove the outlet radiator hose from the vehicle.

INSTALLATION PROCEDURE

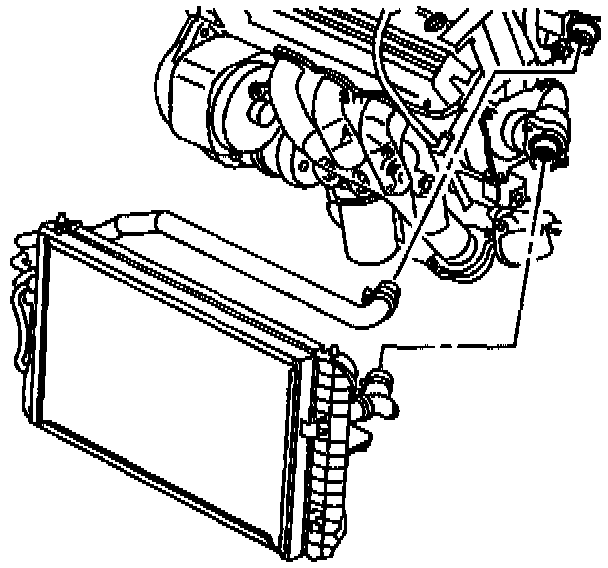

1. Install the outlet radiator hose to the engine.

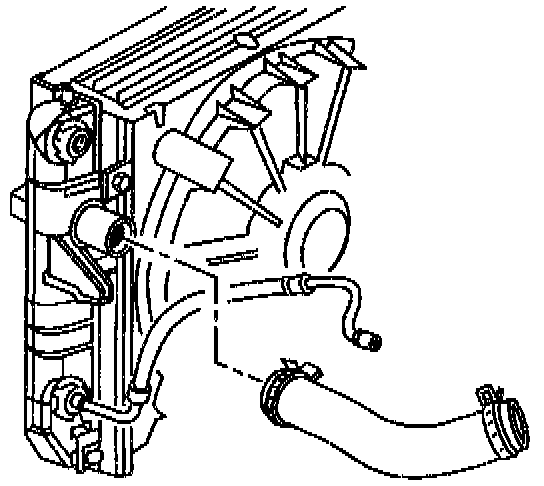

2. Install the outlet radiator hose to the radiator.
3. Install the air cleaner assembly.
4. Install the upper filler panel.
5. Fill the cooling system.
