Camshaft Bearing Cap Torque

Loosely install the cam bearing cap bolts.

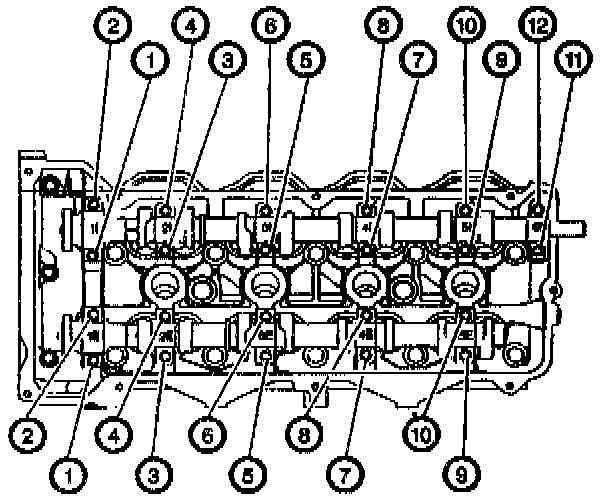

Tighten the camshaft bearing cap bolts in sequence shown.

Tighten the bearing cap bolts to 5 N.m + 30 degrees (44 in. lbs. + 30 degrees).
