Generator Controls And Battery
Generator Controls And Battery

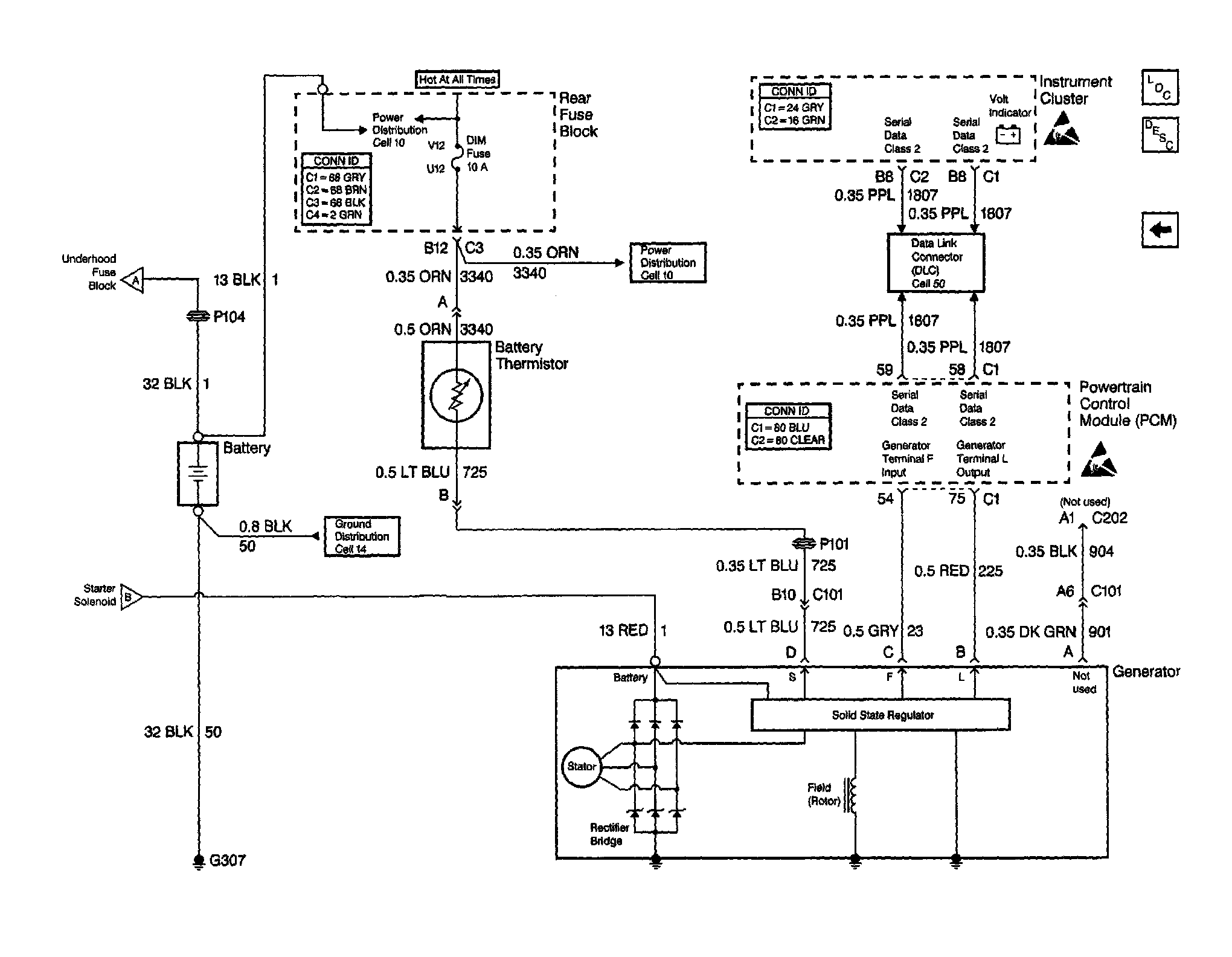

Starting And Charging Schematics: Generator Control And Battery:
