Home
>>
Cadillac
>>
1999
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C109
C109

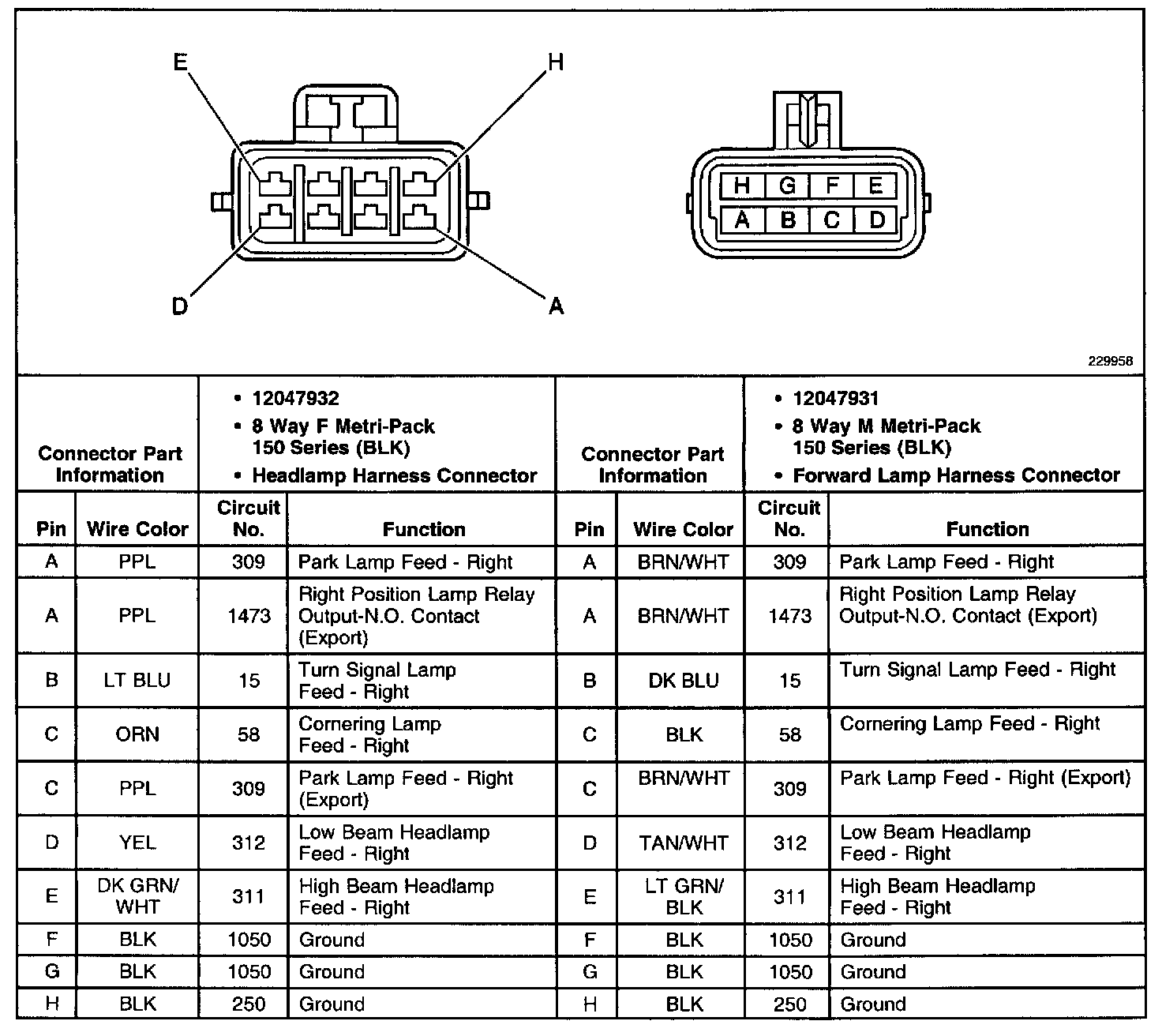

In Line Connector End Views C109:
