C201
C201

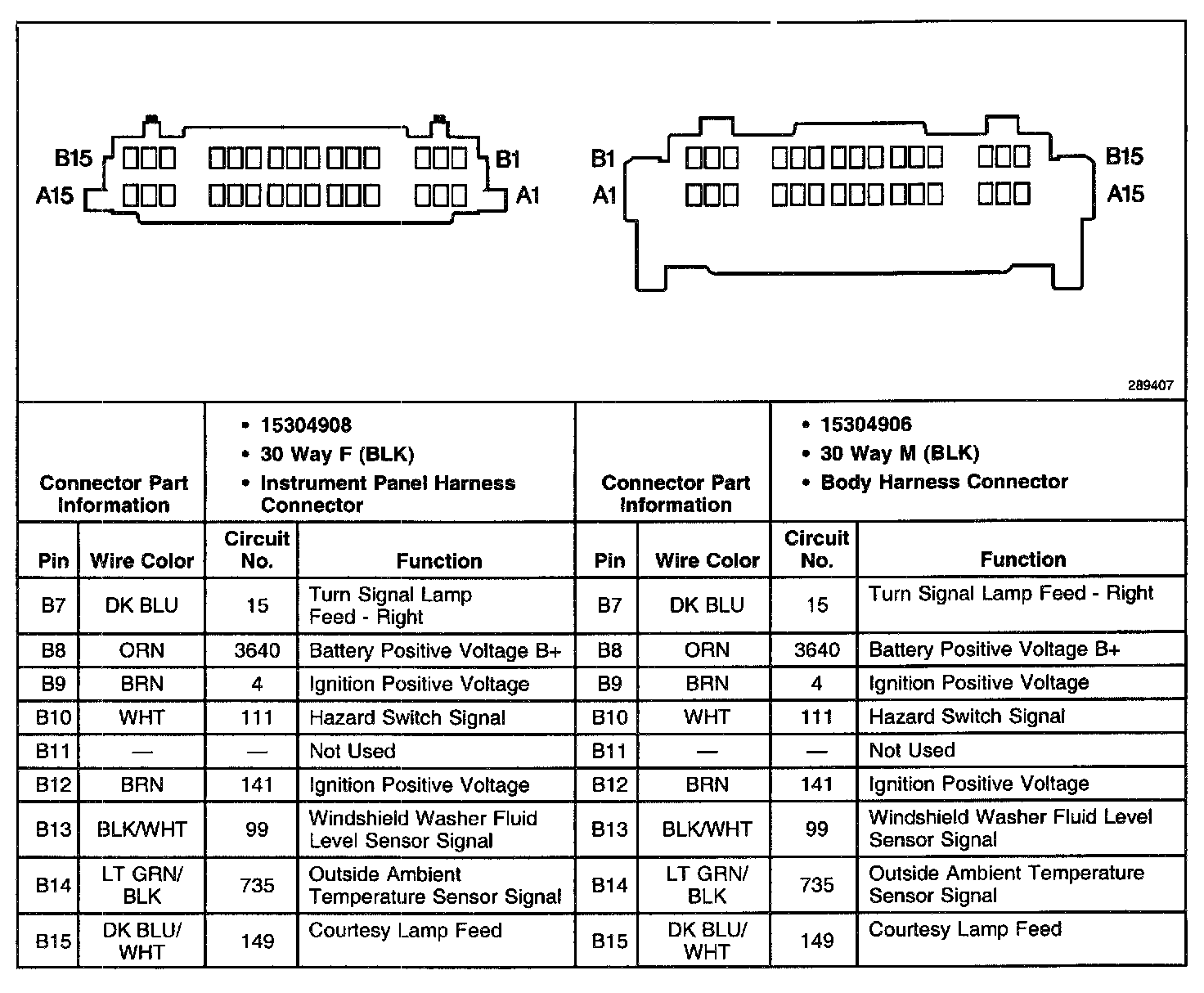

In Line Connector End Views C201 (Part 1 Of 2):
In Line Connector End Views C201 (Part 2 Of 2):
