Radiator Hose Replacement-Inlet

Remove Procedure
1. Drain the cooling system.
2. Remove the upper filler panel.





3. Remove the radiator brackets.
4. Remove the hood latch bracket.

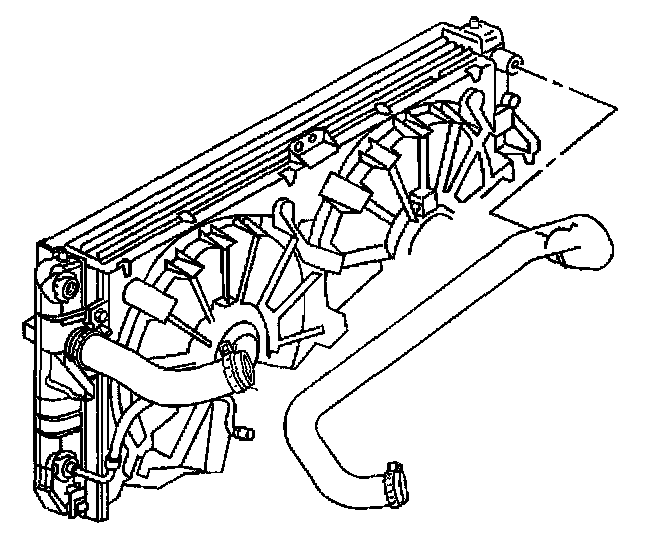

5. Remove the headlamps. Refer to Headlamp Replacement in Lighting and Horns.
6. Tilt the radiator forward to gain access to the inlet radiator hose clamp.





7. Disconnect the inlet radiator hose from the radiator.
8. Disconnect the inlet radiator hose from the engine.





9. Remove the inlet radiator hose from the vehicle.

Installation Procedure





1. Install the inlet radiator hose to the engine.





2. Install the inlet radiator hose to the radiator.
3. Reposition the radiator to its original location.





4. Install the radiator brackets.
5. Install the upper filler panel.
6. Install the hood latch bracket.
7. Install the headlamps.
8. Fill the cooling system.
