Steering Wheel Control Switch

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to Disabling the SIR System in Air Bag(s) Arming and Disarming.
2. Remove the inflatable restraint steering wheel module. Refer to Infl Rst Steering Wheel Module Replacement.

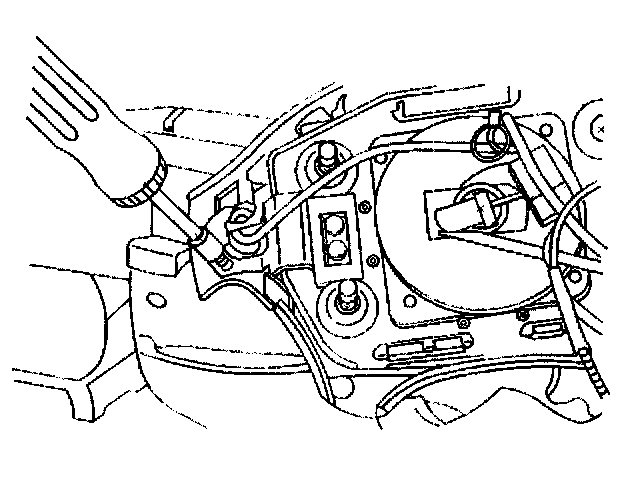

3. Remove the screws retaining the steering wheel switches in place.





4. Disconnect the electrical connection and remove the steering wheel control switch.


INSTALLATION PROCEDURE





1. Connect the electrical connection to the switch.
2. Install the steering wheel control switch.
3. Install the inflatable restraint steering wheel module. Refer to Infl Rst Steering Wheel Module Replacement.
4. Enable the SIR system. Refer to Enabling the SIR System in Air Bag(s) Arming and Disarming.
