Steering Column





Column/Ignition Lock Schematics (Electronic Park Lock (console only))

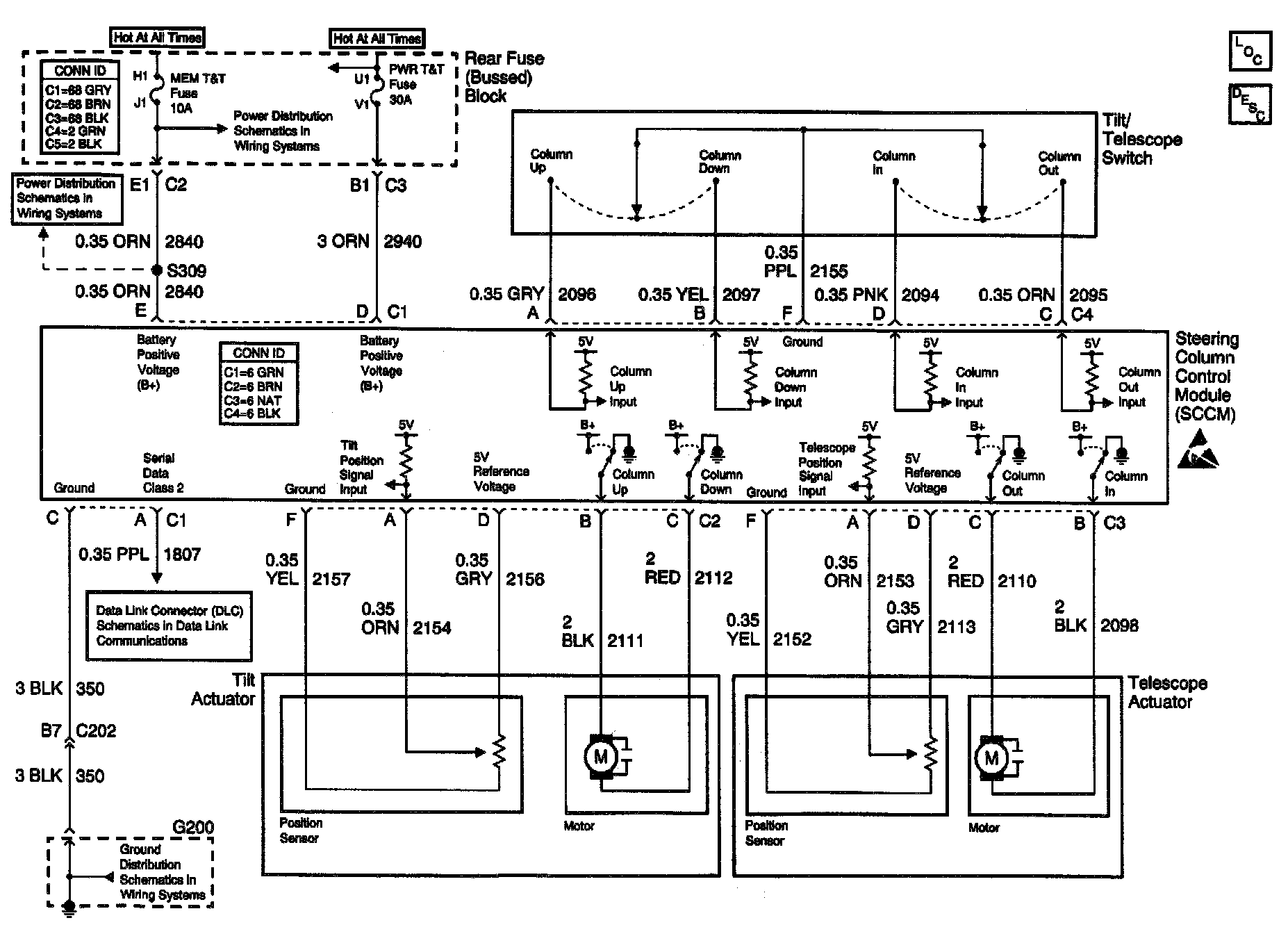

Tilt/Telescoping Steering Column Schematics (Tilt/Telescoping Steering Column Module Schematics)
