Brake Pads Replacement - Front

Removal Procedure





1. Remove two-thirds of the brake fluid from the master cylinder.
2. Raise the vehicle and suitably support. Refer to Vehicle Lifting.
3. Mark the relationship of the wheel to the axle flange.
4. Remove the Wheel.

Important: Do not use a screwdriver or pry bar to compress the caliper piston into the caliper. Any damage to the piston boot could cause corrosive elements to enter the piston sealing area and lead to the piston seizing in the caliper bore.

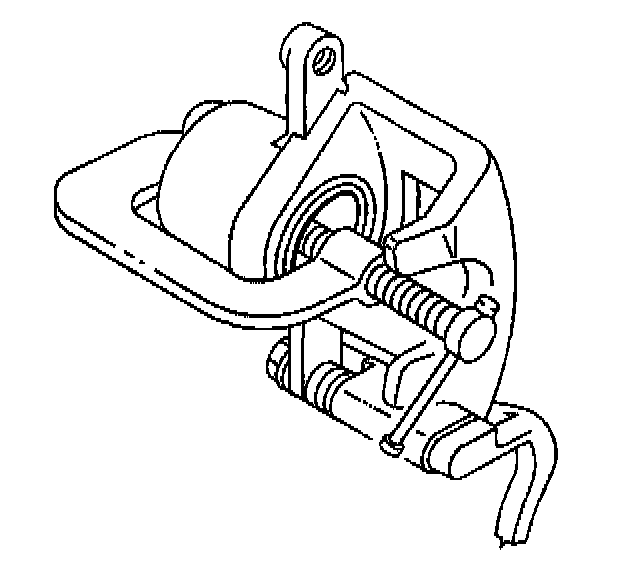

5. Using a large C clamp compress the caliper piston into the caliper bore completely.

Important: Do not pinch wear sensor wiring harness.





6. Remove the brake pad wear sensor from the inner brake pad by pulling out.

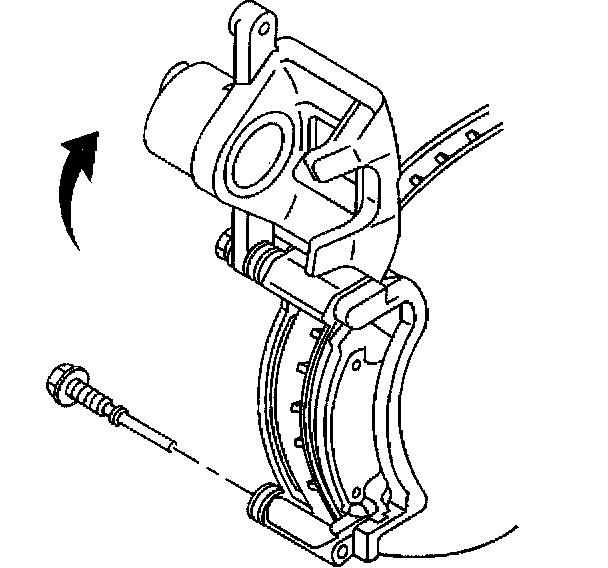

7. Remove the bottom caliper pin bolt.





8. Pivot the caliper body upward.

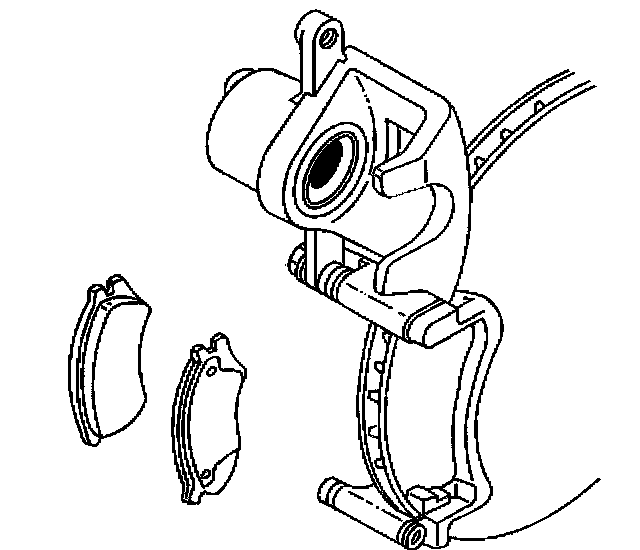

9. Remove the inboard and outboard pads from the anchor bracket.





10. Remove and inspect the pad retainers.

Installation Procedure

Important: Inspect the caliper bolt suspension boots for cuts, tears, or deterioration. If damaged, replace the pin boots. Refer to Caliper Bracket Overhaul. Inspect the piston boot for deterioration. If damaged, Refer to Brake Caliper Overhaul. Caliper pin bolt for damage or corrosion. Replace if damaged or corroded. Do not attempt to clean away corrosion. Corrosion is typically caused by damaged pin boots.





1. Install the brake pad retainers into the caliper anchor bracket.





2. Install both brake pads into the caliper anchor bracket with the wear sensor on the outboard side, in the up or leading position.

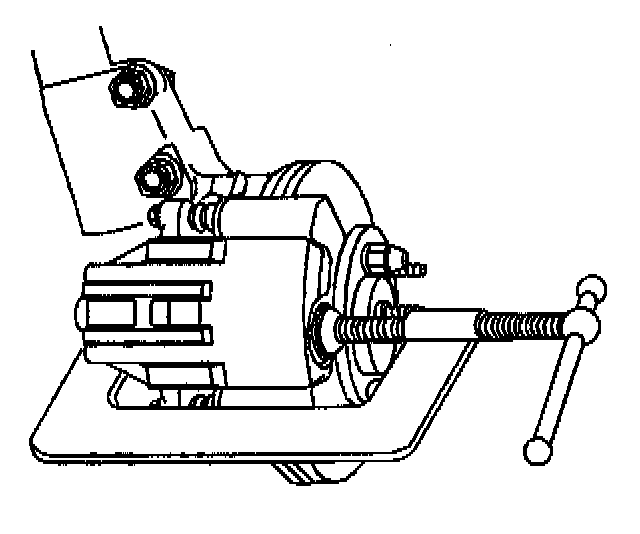

3. If new brake pads are being installed in the vehicle it may be necessary to bottom the caliper piston completely into the caliper bore. Use a large C clamp and compress the piston into the caliper bore.

Important: The caliper piston boot must lay flat. Make sure convolutions are tucked into place.

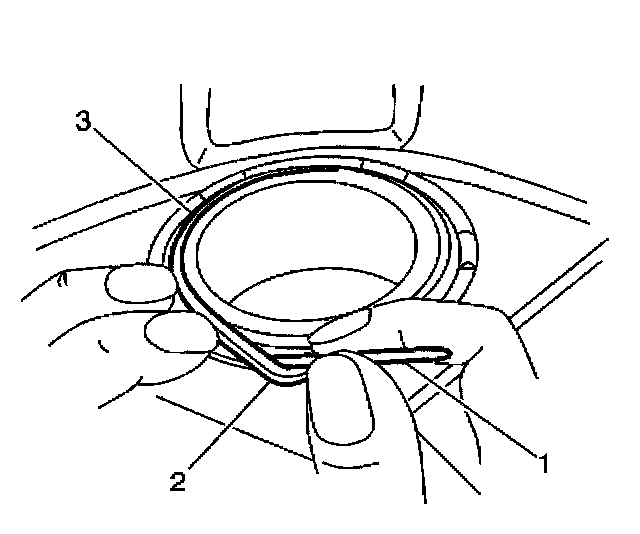

4. Use a small plastic or wooden tool (1) to lift the inner edge of the boot next to the piston (2), and press out any trapped air.

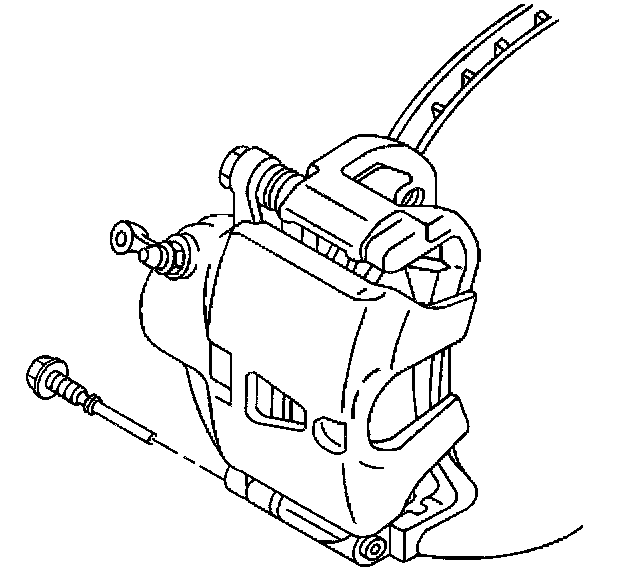

5. Pivot the caliper down over the brake pads and into the anchor bracket. Snap the brake pad wear sensor into the inner brake pad.





6. Clean and lubricate the caliper pin bolt, and install the lower caliper pin bolt.
Tighten
Tighten the caliper slide pin to 85 Nm (63 ft. lbs.).
7. Install the tire and wheel assembly.
8. Lower the vehicle.
9. Start the vehicle and apply approximately 778 N (175 lbs.) of force three times to the brake pedal to seat the brake caliper piston and brake pads.
10. Burnish the pads and rotors. Refer to Burnishing Pads and Rotors.
