RH Power Mirror W/Memory
RH Power Mirror W/Memory

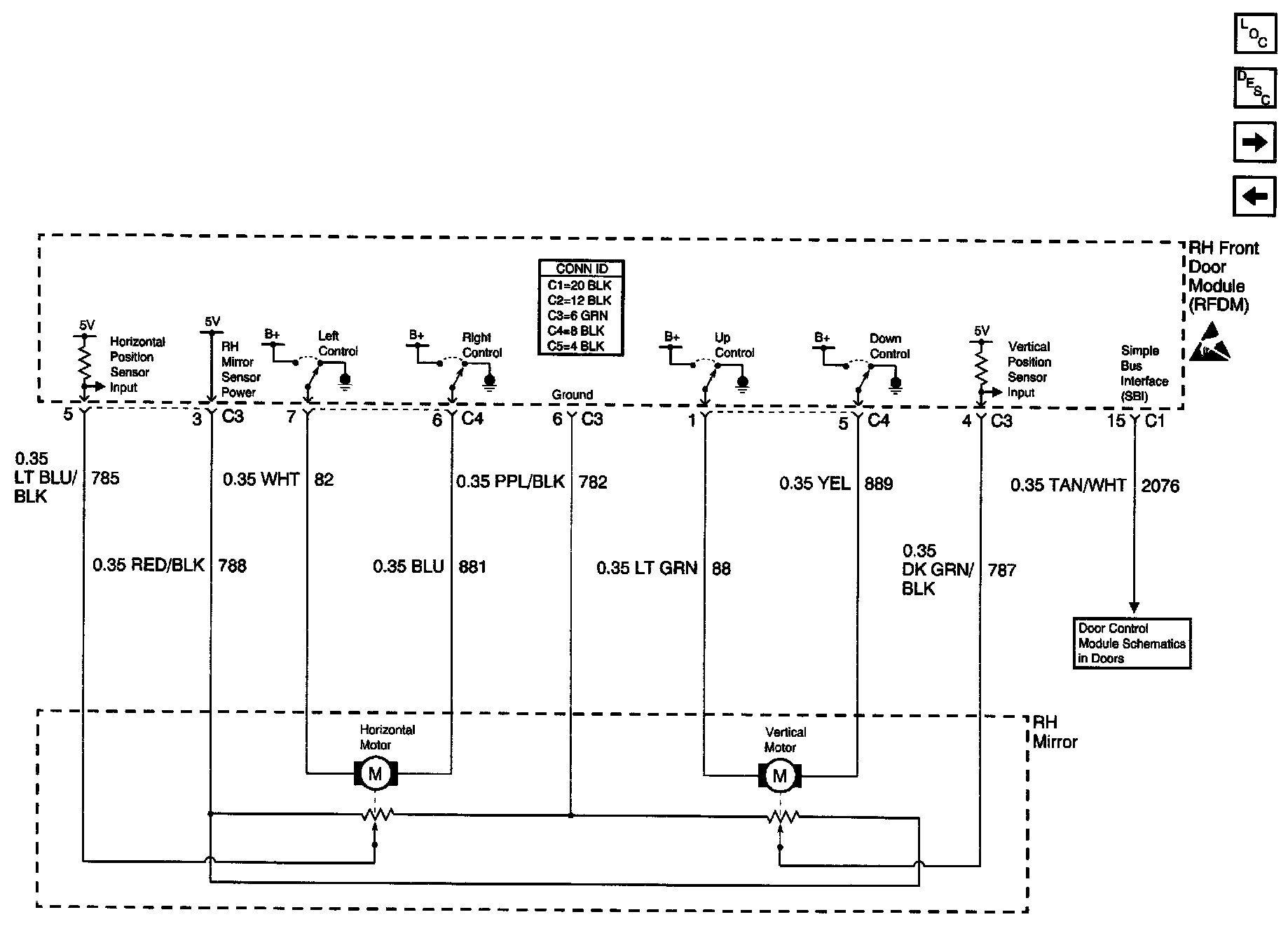

Outside Mirror Schematics: RH Power Mirror W/Memory:
