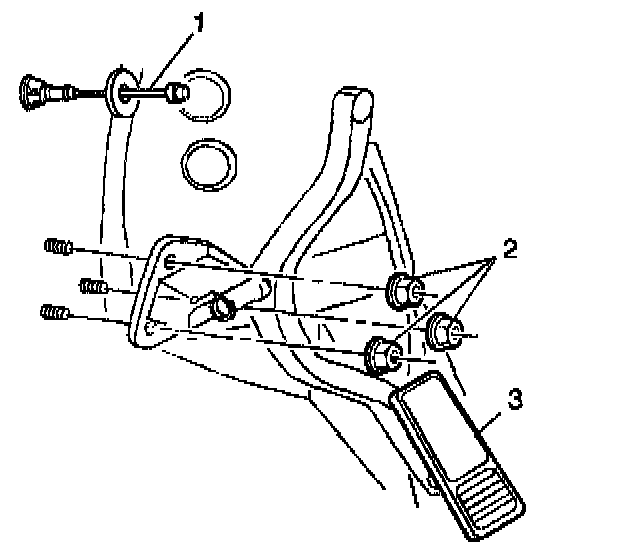

REMOVAL PROCEDURE
1. Remove the right closeout/insulator panel replacement.
2. Remove the accelerator controls cable (1) from the accelerator controls pedal (3).
3. Remove the nuts (2) from the accelerator controls pedal assembly (3).
4. Remove the accelerator controls pedal assembly (3).

INSTALLATION PROCEDURE
1. Install the accelerator controls pedal assembly (3).
2. Install the accelerator controls pedal assembly nuts (2) accelerator controls pedal assembly.

IMPORTANT: The throttle should operate freely without binding between full closed and wide open throttle.

3. Install the accelerator controls cable (1) to the pedal (3) pedal.
4. Install the right closeout/insulator panel replacement.
