RF Booster/Bracket Assembly Replacement

REMOVAL PROCEDURE




1. Remove the rear seat back.

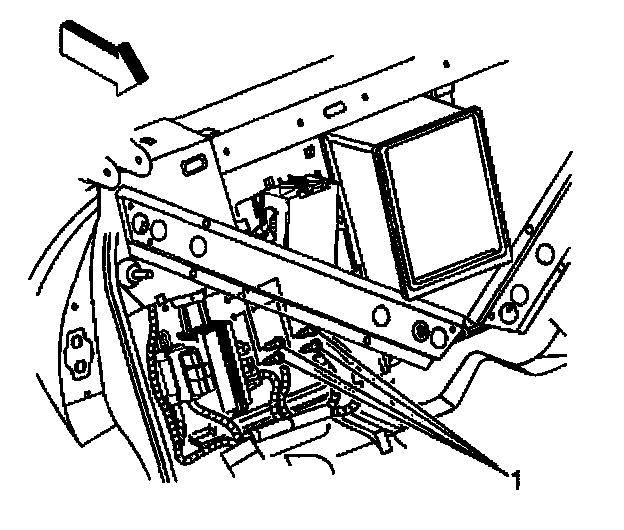

2. Remove the 4 RF booster fasteners (1) from the bay board on the passenger side of the vehicle.




3. Remove the rear compartment trim.

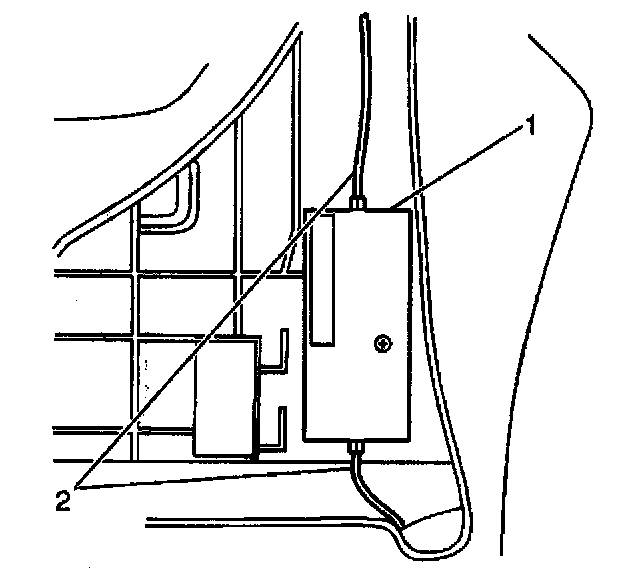

4. Remove the coaxial antenna cable from the RF booster (1).
5. Remove the RF booster (1) from the rear compartment.

INSTALLATION PROCEDURE




1. Position the RF booster (1) in the rear compartment.
Install the coaxial antenna cable to the RF Booster (1).




2. With the aid of a helper, hold the RF booster in position and install the 4 fasteners (1) through the bay board to the RF Booster.
3. Install the fasteners (1).

Tighten
Tighten the fasteners to 1.6 N.m (14 lb in).

4. Install the rear compartment trim.
5. Install the rear seat back.
