Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> LH Driver Information Center (DIC) Switch

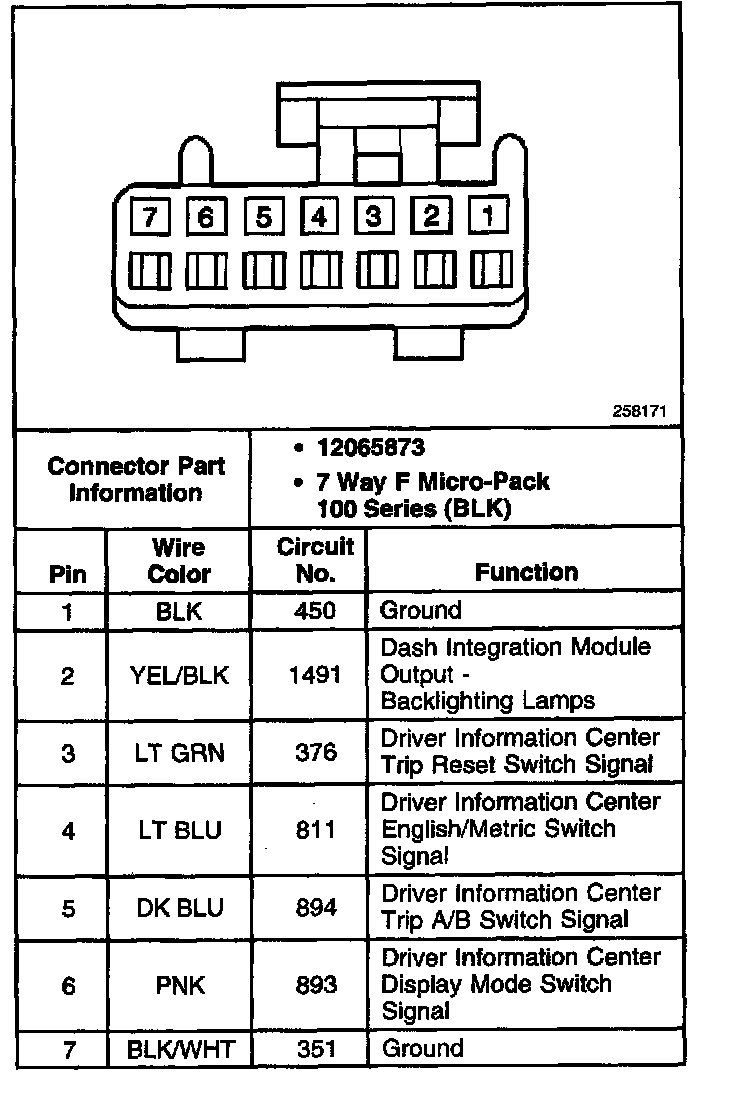

LH Driver Information Center (DIC) Switch

LH Driver Information Center (DIC) Switch:
