Auxiliary RCA Video Jacks
Auxiliary RCA Video Jacks

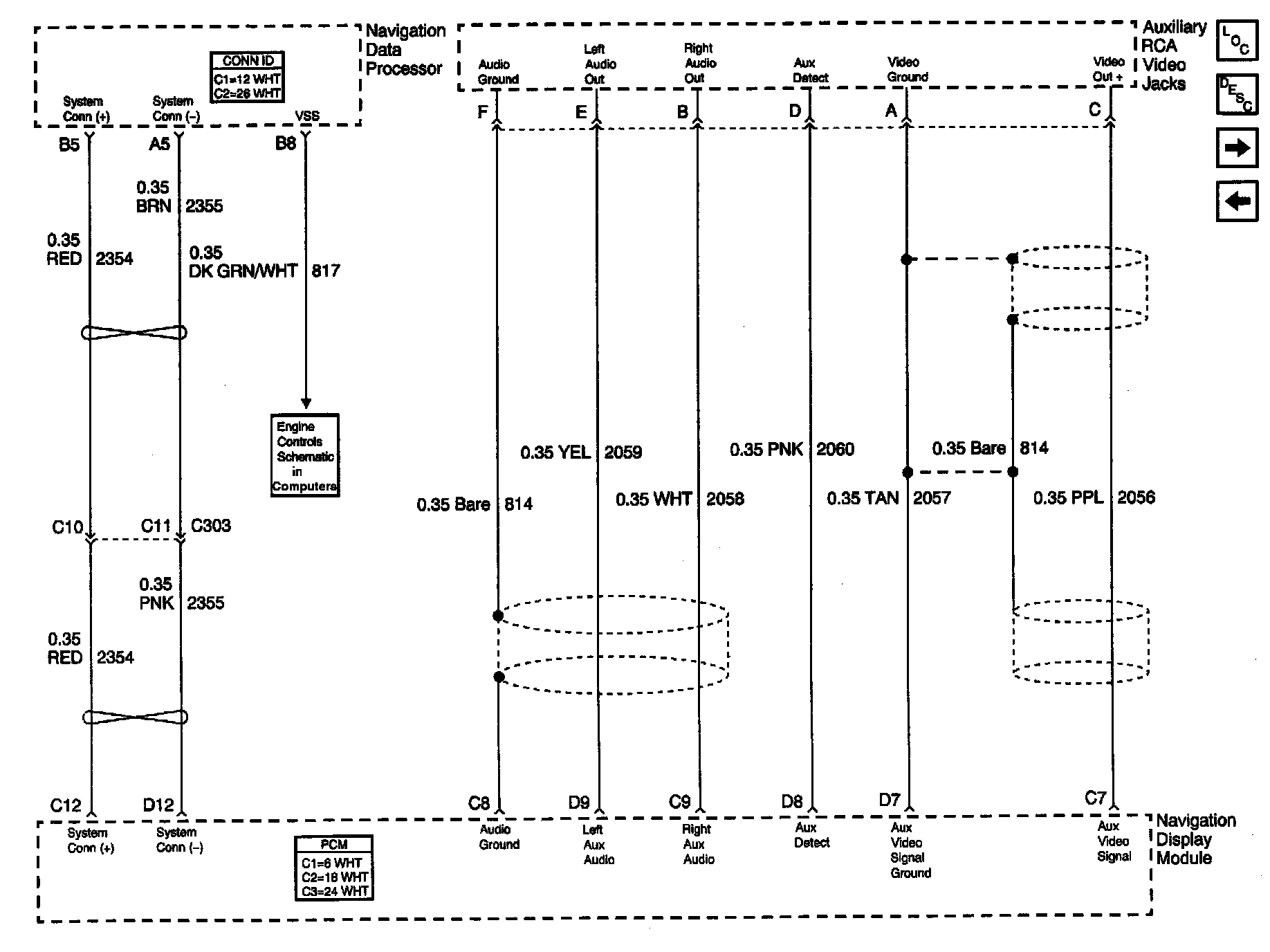

Navigation System Schematics: Auxiliary RCA Video Jacks:
