Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Wheel

Steering Wheel

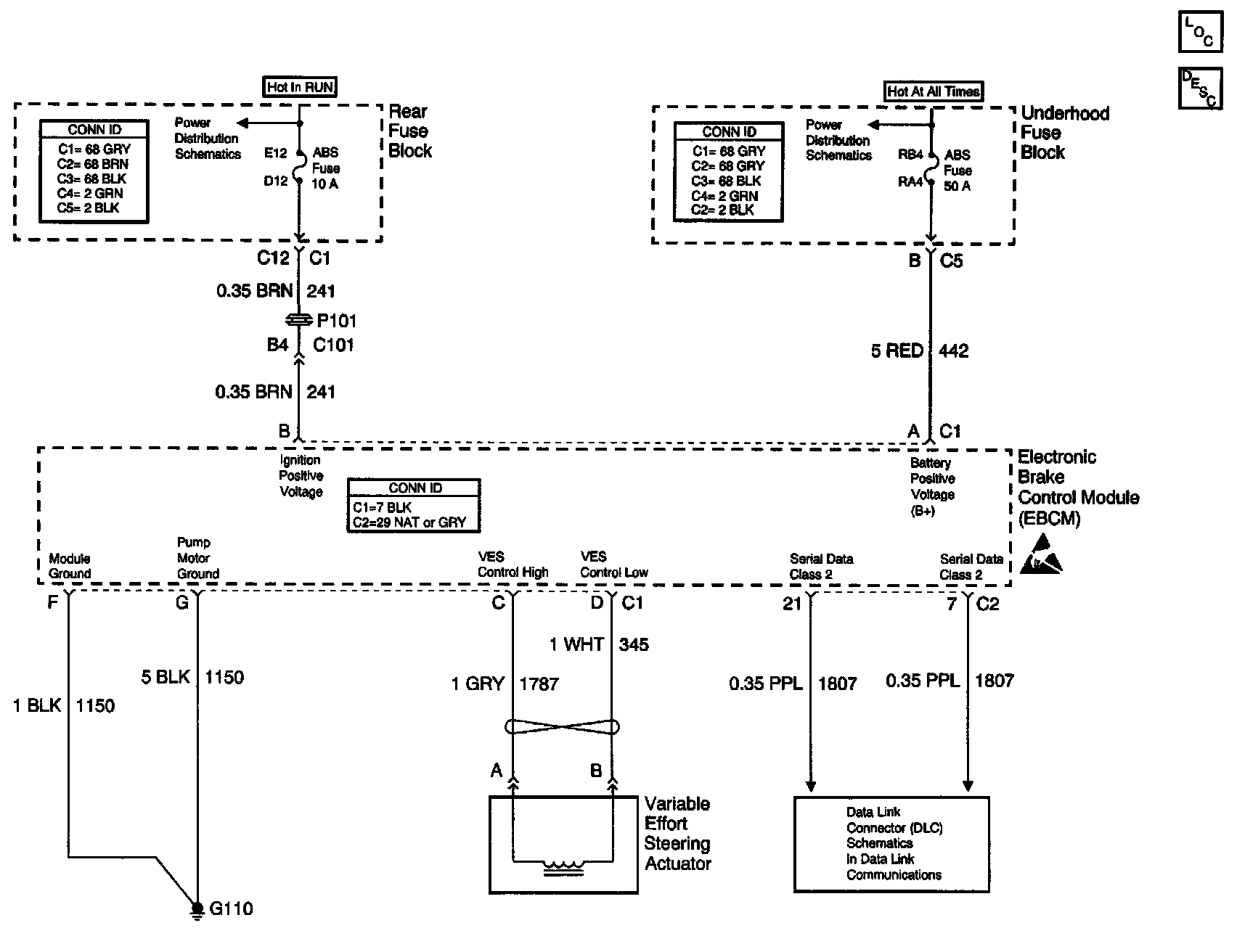

Steering Controls Schematics:
