Cabin Ventilation Grille: Service and Repair

Pressure Relief Valve Replacement

Removal Procedure

1. Open the rear compartment.
2. Remove the LH side rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side (Rear Compartment Side Trim Replacement - Left Side) .

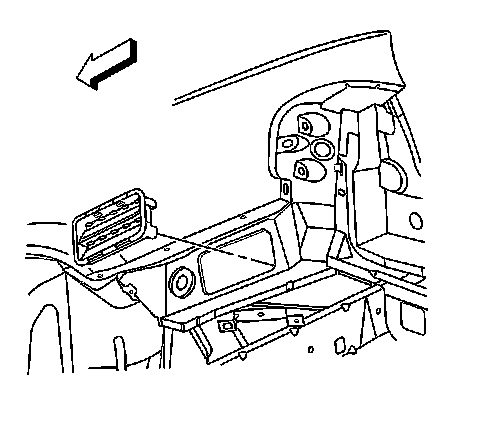

3. Depress the tab retainers to release the pressure relief valve from the quarter panel.
4. Remove the pressure relief valve from the vehicle.



Installation Procedure





1. Install the pressure relief valve to the quarter panel pressing into place until tabs are fully seated.
2. Press the pressure relief valve to the vehicle to engage the tabs.
3. Install the LH side rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side (Rear Compartment Side Trim Replacement - Left Side) .
4. Close the rear compartment.
