Locations
>>
Splice Locations
>>
S200 - S299
>>
S201
S201

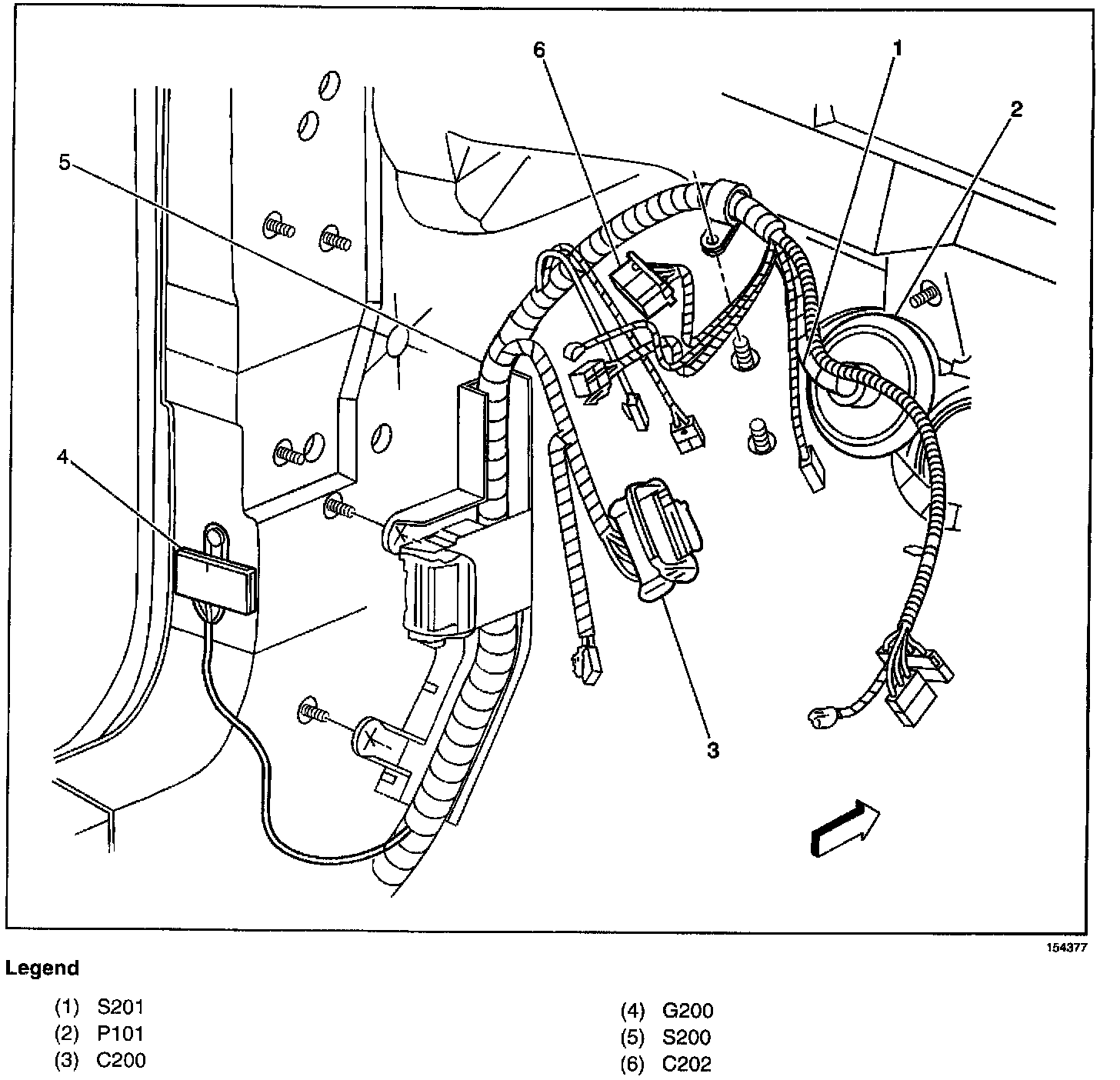

Locations View:
Body harness, left hand of the instrument panel approximately 26 cm (10.2 in) from P101
