Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Diagrams >> Inflatable Restraint Instrument Panel Module

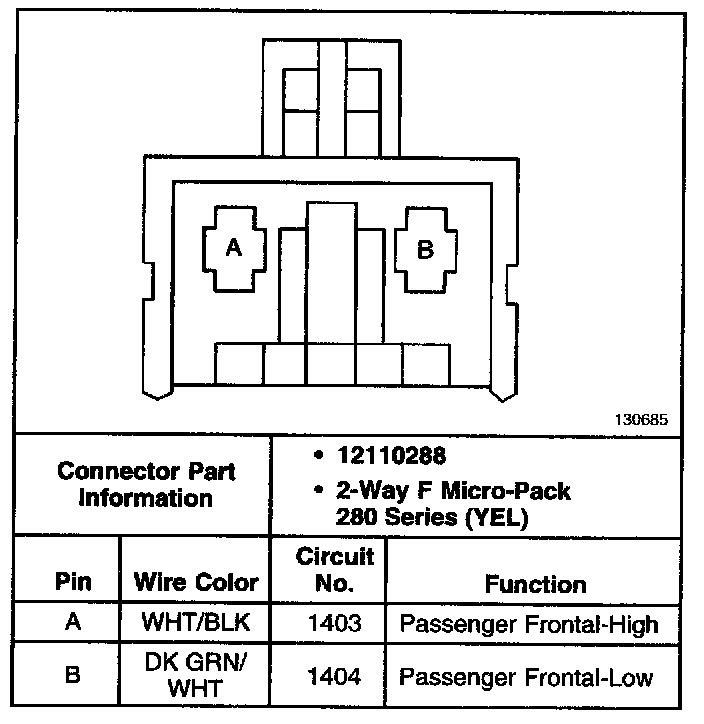

Inflatable Restraint Instrument Panel Module

Inflatable Restraint Instrument Panel Module:
