Hood Weatherstrip: Service and Repair

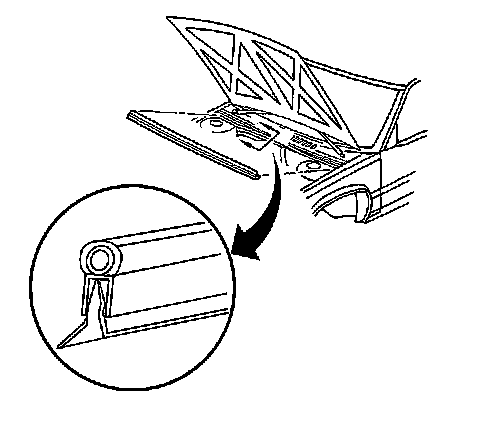

Hood Rear Seal Replacement

Removal Procedure




1. Grasp the sealing strip at one end.
2. Pull the sealing strip from the screen panel.
3. Remove the hood sealing strip.

Installation Procedure




1. Start the sealing strip at one end.
2. Work the sealing strip onto the screen panel.
