Valve Body: Service and Repair

Control Valve Body

Removal Procedure





1. Remove the transmission oil pan and oil filter.

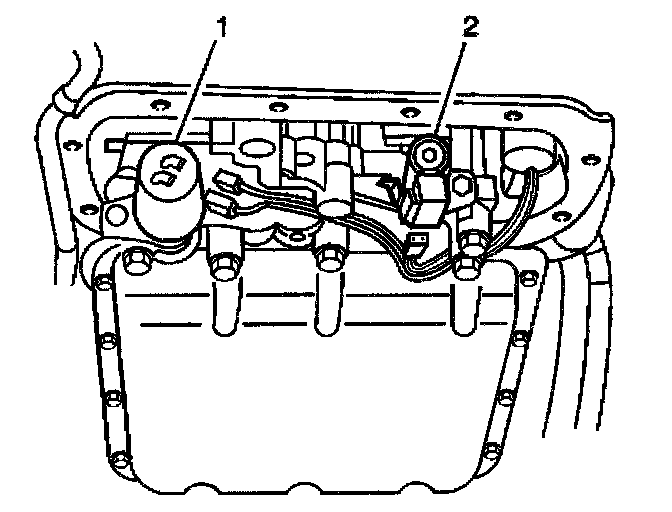

2. Disconnect the electrical connectors from the solenoid valves (1, 2).
3. Remove the wiring harness connector from the transmission housing.
4. Remove the wiring harness.

Installation Procedure





1. Install the wiring harness.
2. Install the wiring harness connector to the transmission housing.

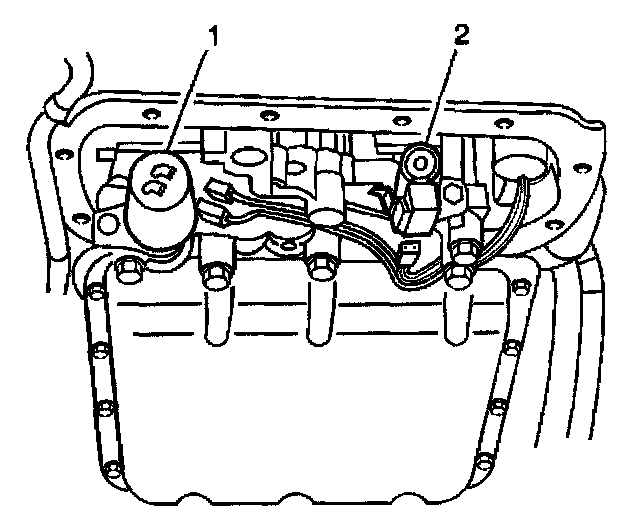

3. Connect the electrical connectors to the solenoid valves (1, 2).
4. Install the transmission oil filter and the transmission oil pan.
