Home
>>
Cadillac
>>
2001
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Air Injection Pump
>>
Locations
>>
Component Locations
Component Locations

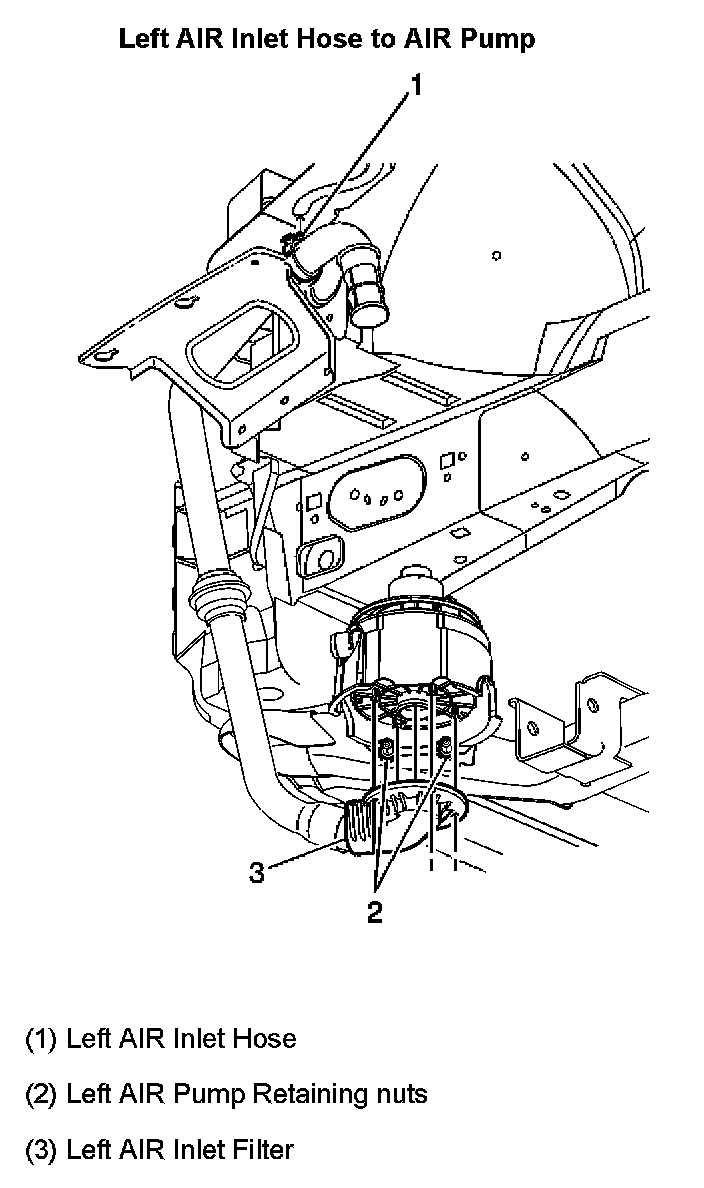

Left AIR Inlet Hose To AIR Pump:
