Air Outlet Replacement - Side Window

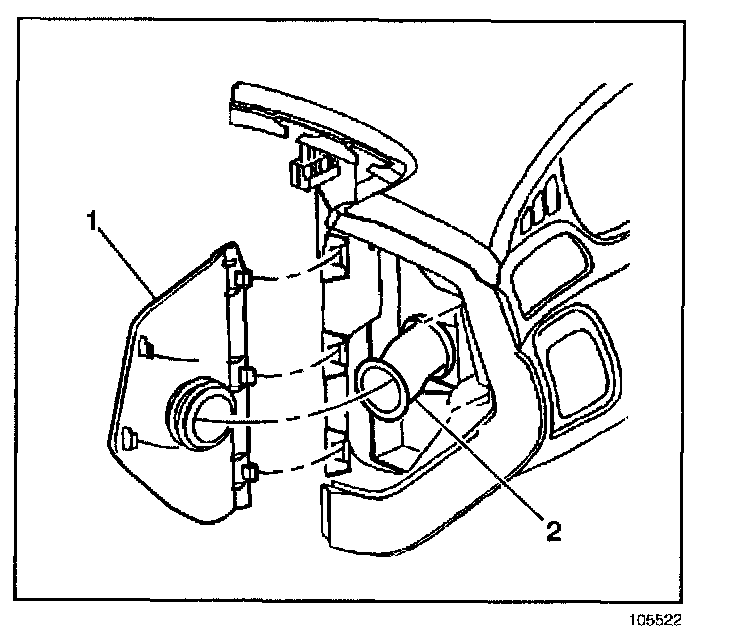

REMOVAL PROCEDURE




1. Remove the IP end cap (1).
2. Grasp the side air outlet (2) and pull the outlet outward in order to remove the outlet.

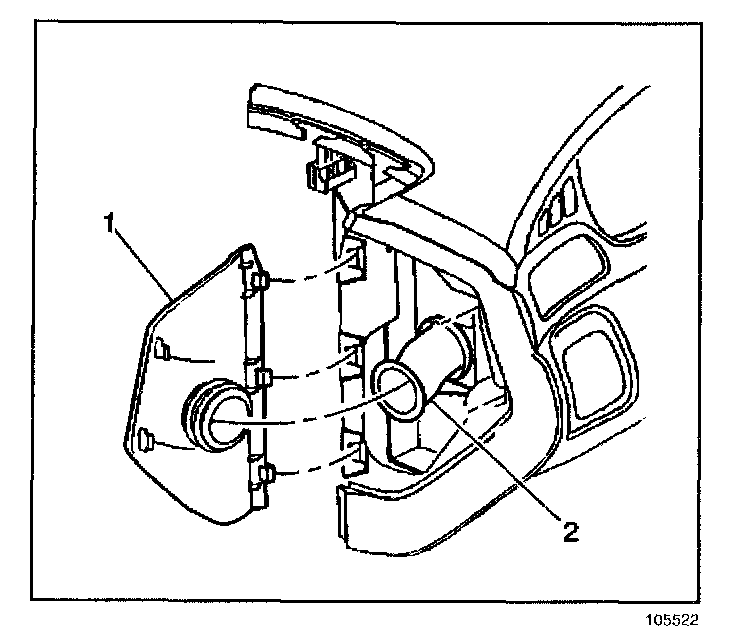

INSTALLATION PROCEDURE




1. Align the side air outlet (2).
2. Push the side air outlet (2) on the cross car duct until the outlet is fully seated.
3. Install the end cap (1).
