Fuel Pressure Regulator: Service and Repair

REMOVAL PROCEDURE
1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.

CAUTION: Refer to Gasoline/Gasoline Vapors Caution in Service Precautions.

2. Remove the air inlet grill in order to gain access to the fuel pressure regulator.
3. Place a shop towel under the fuel pressure regulator to absorb any lost fuel when removing the regulator.

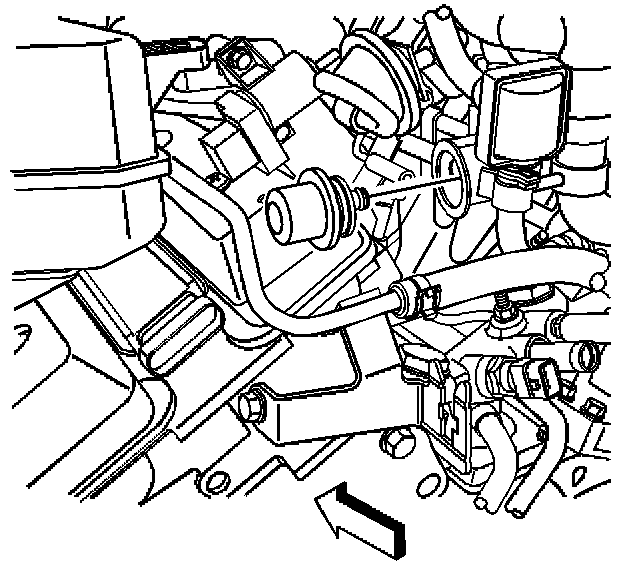

4. Disconnect the atmospheric vent hose from the fuel pressure regulator.

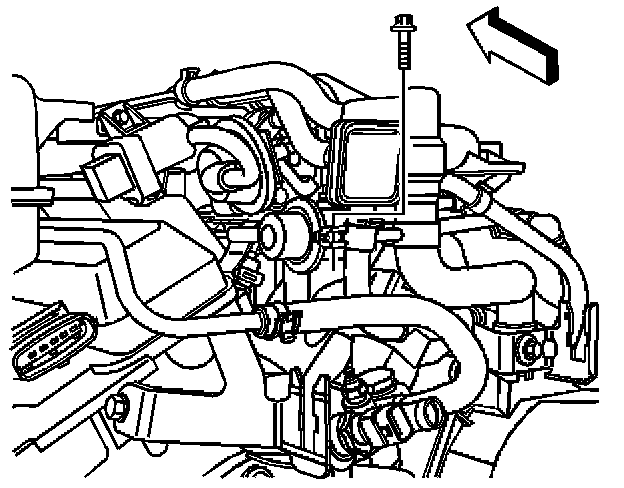

5. Remove the fuel pressure regulator clamp bolt.
6. Spread the clamp only enough to allow the fuel pressure regulator to be removed.




7. Twist while pulling outward in order to remove the fuel pressure regulator from the fuel rail.

INSTALLATION PROCEDURE




1. Apply a few drops of clean engine oil to the O-ring seals on the fuel pressure regulator.

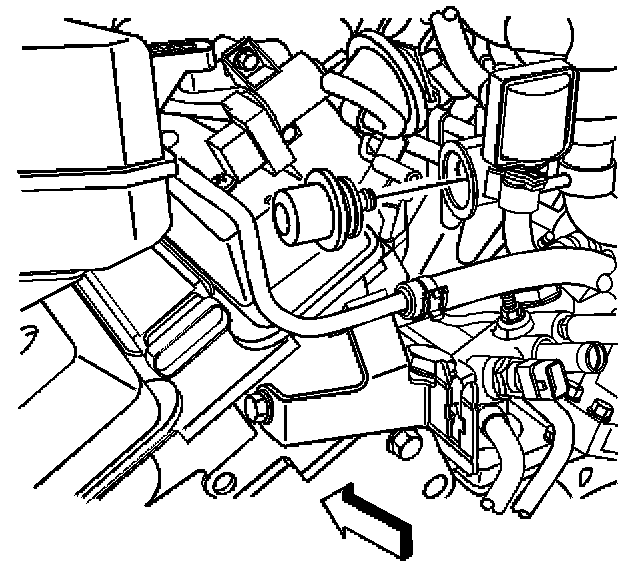

2. Twist while pushing inward on the fuel pressure regulator, until fully seated against the fuel rail.

IMPORTANT: Be sure to locate the atmospheric vent toward the front of the engine on the fuel pressure regulator.

3. Position the clamp around both the fuel pressure regulator and the fuel rail.




4. Install the fuel pressure regulator clamp bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fuel pressure regulator clamp bolt to 5 N.m (44 lb in).

5. Install the atmospheric vent hose on to the fuel pressure regulator port.
6. Using the scan tool turn ON the fuel pump to pressurize the system.
7. Check for fuel leaks.
8. Install the air inlet grill.
